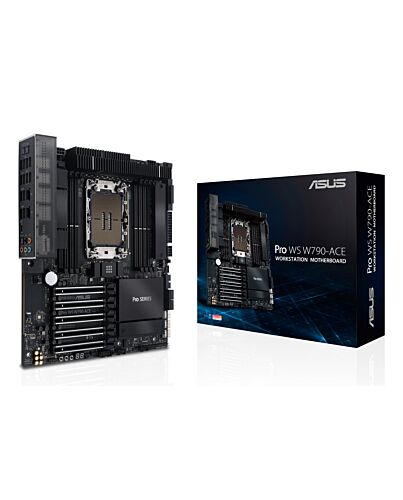

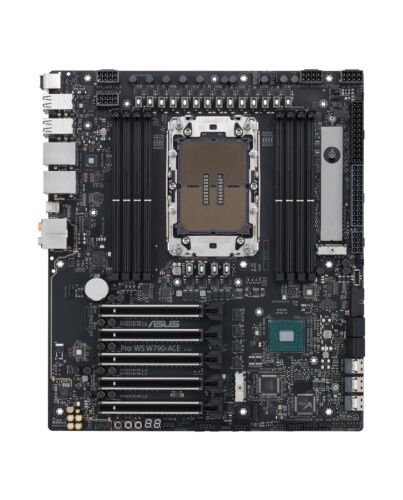

ASUS PRO WS W790-ACE Intel W790 LGA 4677 (Socket E) SSI CEB
£770.57
ASUS PRO WS W790-ACE, Intel, LGA 4677 (Socket E), Intel Xeon W, W-3400, W-2400, DDR5-SDRAM, 2 TB
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Specifications
Processor
Processor manufacturer*
Intel
Processor socket*
LGA 4677 (Socket E)
Compatible processor series*
Intel Xeon W
Intel Xeon series
W-3400, W-2400
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
8
Memory slots type
DIMM
Memory channels
Quad-channel
ECC сompatibility
ECC
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz
Maximum internal memory*
2 TB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
6
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
On-board graphics card
No
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors*
1
Number of SATA III connectors*
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
5
EPS power connector (8-pin)
Yes
Number of COM connectors
1
TPM connector
Yes
12V power connector
Yes
Rear panel I/O ports
USB 2.0 ports quantity*
8
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
4
Rear panel I/O ports
USB 3.2 Gen 2x2 Type-C ports quantity
1
Ethernet LAN (RJ-45) ports*
2
Headphone outputs
1
Microphone in
Yes
S/PDIF out port
Yes
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Wi-Fi*
No
Features
Motherboard chipset*
Intel W790
Audio chip
tek S1220A
Audio output channels*
7.1 channels
Product colour
Black
Component for*
Workstation
Motherboard form factor*
SSI CEB
Motherboard chipset family*
Intel
Windows operating systems supported
Windows 10 x64, Windows 11
Expansion slots
PCI Express x16 (Gen 5.x) slots
5
Number of M.2 (M) slots
2
BIOS
BIOS type*
UEFI AMI
BIOS memory size
512 Mbit
Clear CMOS button
Yes
Packaging data
Package width
370 mm
Package depth
312 mm
Package height
108 mm
Package weight
3.52 kg
Weight & dimensions
Width
305 mm
Depth
277 mm
Height
50 mm
Other features
Weight
1.81 kg
Additional Information
| EAN/UPC | 4711387078174 |
|---|---|
| MPN | PRO WS W790-ACE |
| BRAND | ASUS |
