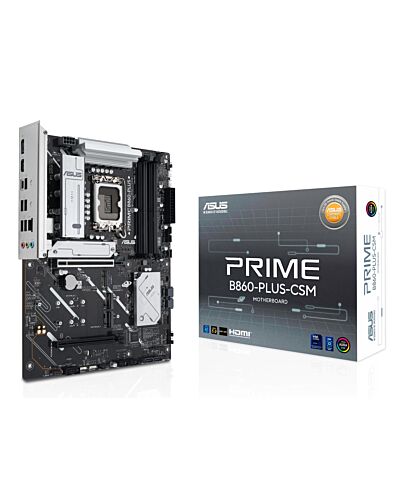

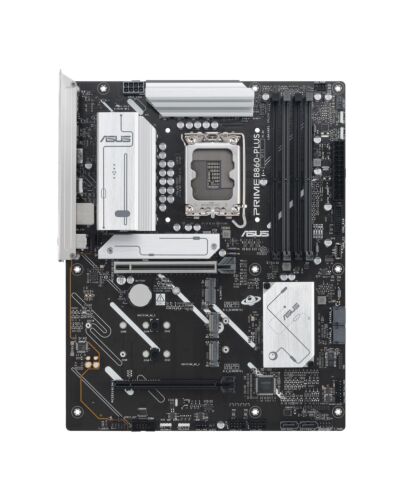

ASUS PRIME B860-PLUS-CSM Intel B860 LGA 1851 (Socket V1) ATX
£132.73
ASUS PRIME B860-PLUS-CSM, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), DDR5-SDRAM, 256 GB, DIMM
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Prime B860-PLUS-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860-PLUS-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860-PLUS-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specifications
Processor
Processor manufacturer*
Intel
Processor socket*
LGA 1851 (Socket V1)
Compatible processor series*
Intel Core Ultra (Series 2)
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speed (max)
8666 MHz
Maximum internal memory*
256 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
7
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
Parallel processing technology support*
Not supported
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
2
Number of SATA III connectors*
4
S/PDIF out connector
Yes
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
1
Number of chassis fan connectors
4
Chassis intrusion connector
Yes
EPS power connector (8-pin)
Yes
Number of COM connectors
1
TPM connector
Yes
Thunderbolt headers
1
12V power connector
Yes
RGB LED pin header
Yes
Rear panel I/O ports
USB 2.0 ports quantity*
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
2
USB 3.2 Gen 2x2 Type-C ports quantity
1
Ethernet LAN (RJ-45) ports*
1
HDMI ports quantity*
1
DisplayPorts quantity
1
Line-in
Yes
Microphone in
Yes
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Wi-Fi*
No
Features
Motherboard chipset*
Intel B860
Audio output channels*
7.1 channels
Product colour
Multicolour
Component for*
PC
Motherboard form factor*
ATX
Motherboard chipset family*
Intel
Windows operating systems supported
Windows 10 x64, Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
3
BIOS
BIOS type*
UEFI AMI
BIOS memory size
256 Mbit
Packaging data
Package width
377 mm
Package depth
372 mm
Package height
302 mm
Package weight
1.56 kg
Weight & dimensions
Width
305 mm
Depth
244 mm
Height
49 mm
Other features
Weight
896 g
Additional Information
| EAN/UPC | 4711387814857 |
|---|---|
| MPN | 90MB1KA0-M0EAYC |
| BRAND | ASUS |
