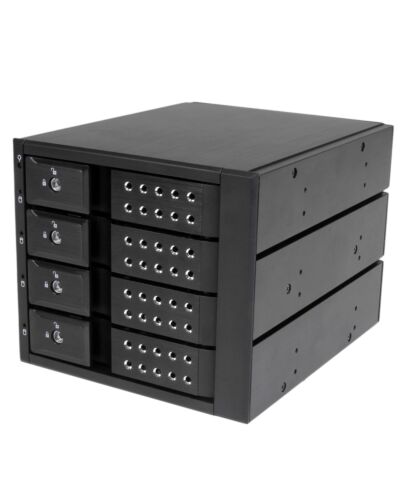

StarTech.com 4 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD
£91.81
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25” bays, with support for transfer speeds up to 6 Gbps
The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.
The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.
The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
Features
Product colour
Black
Material
Aluminium
Hot-swap
Yes
Number of fans
1 fan(s)
Fan diameter
7 cm
Data transfer rate
6 Gbit/s
LED indicators
Activity, Power
Key lock
Yes
Certification
CE, FCC
Ports & interfaces
External SATA ports quantity
4
Weight & dimensions
Width
145 mm
Depth
197 mm
Height
124 mm
Weight
1.3 kg
Packaging data
Package width
254 mm
Package depth
164 mm
Packaging data
Package height
180 mm
Package weight
1.59 kg
Packaging content
Cables included
SATA
Screws included
Yes
Manual
Yes
Operational conditions
Storage temperature (T-T)
-20 - 65 °C
Operating temperature (T-T)
0 - 55 °C
Operating relative humidity (H-H)
5 - 85%
Technical details
Compliance certificates
RoHS
Logistics data
Products per master (outer) case
6 pc(s)
Master (outer) case width
385 mm
Master (outer) case length
516 mm
Master (outer) case height
281 mm
Harmonized System (HS) code
84733080
Additional Information
| EAN/UPC | 0065030859547 |
|---|---|
| MPN | HSB4SATSASBA |
