  • APC Easy Rack PDU, Switched Metered Outlet, 0U, 1 Phase, 7.4kW, 230V, 32A, (20) C13 and (4) C19 outlets, IEC60309 2P+E inlet

Components

APC Easy Rack PDU, Switched Metered Outlet, 0U, 1 Phase, 7.4kW, 230V, 32A, (20) C13 and (4) C19 outl

£1,258.30

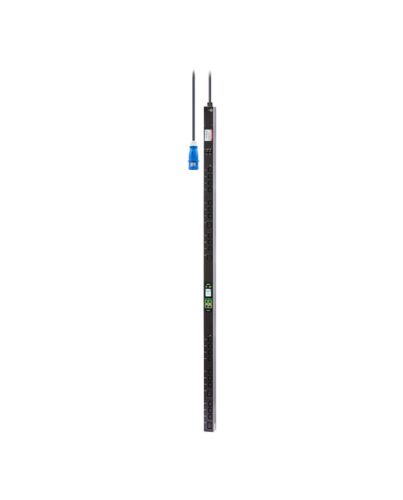

APC Easy Rack PDU, Switched Metered Outlet, 0U, 1 Phase, 7.4kW, 230V, 32A, (20) C13 and (4) C19 outlets, IEC60309 2P+E inlet, Metered, Switched, 0U, Single-phase, Vertical, Metal, Black
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

Easy rack PDU Metered-by-Outlet with Switching EPDU2132SMBO provides advanced power monitoring and control capabilities for individual outlets, empowering critical IT infrastructure. The Network Management Card NMC3 provides enhanced cybersecurity with secured interfaces and ified password policy. The rack PDU integrates with EcoStruxure IT through a Network Management Card (NMC3) and can be accessed and configured via Web, SNMP, and Command Line Interface. EPDU2132SMBO is designed for single phase applications of upto 7.4kw and industry standards of 1% metering accuracy. This comes with IEC 603093 32A 2P+E type inlet, Twenty IEC C13 and four IEC C19 type outlet sockets. It features an ultra-lightweight aluminum housing, offering up to 50% weight reduction, along with environmental monitoring and an all-new improved display ule. Vertical mounting capabilities allow users to mount the units in a rack or enclosure in zero U space without expending valuable rack space This is designed to operate within a temperature range of -5°C to +50°C and is backed by a standard 2-year warranty. Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment) The rack PDU supports daisy-chain of up to 4 PDUs on a single IP address, thereby reducing networking cost.

Specifications

Design

PDU types*
Metered, Switched
Type
Single-phase
Rack capacity*
0U
Mounting
Vertical
Housing material
Metal
Product colour
Black
Display
LCD

Ports & interfaces

AC outlets quantity*
20 AC outlet(s)
Power plug
IEC 60309
AC outlet types*
C13 coupler

Features

Cable length
3 m

Power

Nominal input voltage*
200 - 240 V
AC input frequency
50/60 Hz
Maximum current*
32 A
Output voltage
200-240 V
Load capacity
7360 VA

Power

Number of phases
1
Power protection features
Overload

Operational conditions

Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 15000 m

Weight & dimensions

Width
55 mm
Depth
56 mm
Height
1800 mm
Weight
7.42 kg

Packaging data

Package weight
8.59 kg
Package width
195 mm
Package depth
130 mm
Package height
2030 mm

Additional Information

More Information
EAN/UPC 731304733454
MPN EPDU2132SMBO
