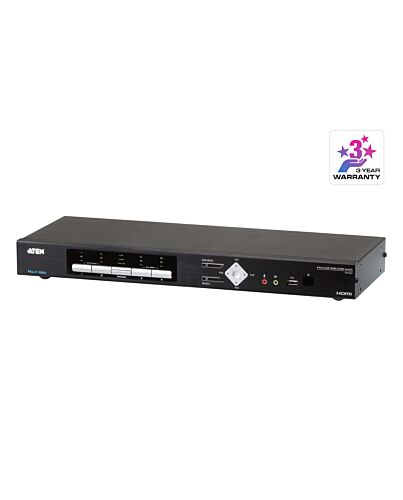

ATEN 4-Port USB HDMI Multi-View KVMP Switch
£2,725.13
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
ATEN CM1284 4-Port USB HDMI Multi-View KVMP™ Switch improves the operational efficiency of -time monitoring. The CM1284 allows users to manage the data more efficiently by allowing multiple sources to be selected, switched, and displayed at the same time with independent keyboard and mouse control.
1x CM1284 4-Port USB HDMI Multi-View KVMP™ Switch
4x LIN5-28V1-V11G USB HDMI Cables
1x LIN2-418K-E12G Power Cord
1x 2XRT-0013G IR Remote Control
1x Rack Mount Kit
1x User Instructions
1x CM1284 4-Port USB HDMI Multi-View KVMP™ Switch
4x LIN5-28V1-V11G USB HDMI Cables
1x LIN2-418K-E12G Power Cord
1x 2XRT-0013G IR Remote Control
1x Rack Mount Kit
1x User Instructions
Key Features
- 4-Port USB HDMI Multi-View KVMP switch with Dual Display. One display is with Quad and PiP/PbP/PoP es, and the other is with full-screen e
- Easily resize and / or reposition any PiP or PbP to suit users’ viewing needs; Supports superior video quality – up to 4K DCI @ 30Hz(4096 x 2160 @ 30Hz) ; YCbCr 4 :2 : 2
- DCC (Daisy Chain Control) — Controls up to 3 additional CM1284 units f a single console; Cascade up to 2 levels — Controls up to 16 computers (with up to 4 x 4 Multi-view e)
- Boundless Switching – Simply moves the mouse cursor across windows to switch to other video sources
Specifications
Ports & interfaces
Number of computers controlled*
4
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
HDMI
HDMI ports quantity
6
USB 2.0 Type-B ports quantity
4
Console ports*
3.5mm headphone, HDMI, RJ–45, USB A
Console USB ports quantity
2
USB hub
Yes
USB 2.0 Type-A hub ports quantity
2
USB connector type
USB Type-A, USB Type-B
Audio connections
Yes
Headphone outputs
6
Number of microphone inputs
6
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Performance
HD type*
4K Ultra HD
Maximum resolution*
4096 x 2160 pixels
Video bandwidth
30 Hz
Scan interval
5,10,15,30,60,90 s
HDCP
Yes
Hot-Plug support
Yes
Daisy chain
Yes
upgradeable
Yes
Design
Rack mounting*
Yes
Rack capacity
1U
Product colour*
Black
Housing material
Metal
Cascadable
Yes
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Display
Built-in display*
No
Display
On Screen Display (OSD)
Yes
Power
Power source
AC
Input voltage
110 - 220 V
AC input frequency
50 - 60 Hz
Input current
1 A
Power consumption (typical)
16 W
Sustainability
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
437.2 mm
Depth
164 mm
Height
44 mm
Weight
3.86 kg
Packaging data
Package width
131 mm
Package depth
540 mm
Package height
233 mm
Package weight
4.26 kg
Packaging content
Cables included
HDMI, USB
Manual
Yes
AC adapter included
Yes
Rack mount kit
Yes
Logistics data
Master (outer) case net weight
11.6 kg
Harmonized System (HS) code
85176200
Master (outer) case width
420 mm
Master (outer) case length
555 mm
Master (outer) case height
258 mm
Master (outer) case gross weight
13.8 kg
Products per master (outer) case
3 pc(s)
Additional Information
| EAN/UPC | 4719264647505 |
|---|---|
| MPN | CM1284-AT-E |
| BRAND | ATEN |
