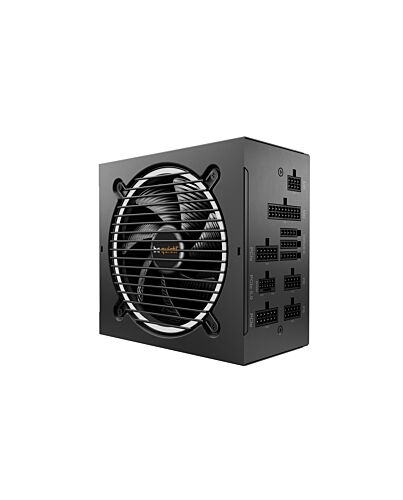

be quiet! PURE POWER 12 M | 1200W power supply unit 20+4 pin ATX ATX Black
£152.28
be quiet! PURE POWER 12 M | 1200W, 1200 W, 100 - 240 V, 1250 W, 50/60 Hz, 15 - 7.5 A, 120 W
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
EXCEPTIONAL QUIET, SUPERIOR FEATURES
Pure Power 12 M 1200W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 12 M 1200W offers the best combination of features in its class.
Pure Power 12 M 1200W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 12 M 1200W offers the best combination of features in its class.
Key Features
- 80 PLUS® Gold efficiency (up to 93.7%)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
- Handles massive power excursions
- Exceptionally silent 120mm be quiet! fan
- Advanced stability and voltage regulation thanks to LLC technology
- 2 strong 12V-rails
- ular cables for maximum build flexibility
- One PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for
- overclocked high-end GPUs
- Full suite of safety features
- Meets latest requirements for ern standby
Specifications
Power
Total power*
1200 W
Peak power
1250 W
AC input voltage*
100 - 240 V
AC input frequency
50/60 Hz
Input current
15 - 7.5 A
Power factor
0.98
Combined power (+3.3V)
120 W
Combined power (+12V)
1200 W
Combined power (+5V)
120 W
Max output current (+3.3V)
22 A
Max output current (+12V1)
55 A
Max output current (+12V2)
50 A
Max output current (+5V)
22 A
Max output current (-12V)
0.3 A
Hold time
19 ms
Efficiency
91.5%
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under power, Under voltage
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
55 cm
Number of SATA power connectors
6
Number of PATA power connectors
2
SATA power cable length
500,650,800,950 mm
Peripheral (Molex) power cable length
800,950 mm
EPS power connector (8-pin)
Yes
PCI Express power connectors (6+2 pin)
4
PCI Express power cable length
60 cm
CPU power connector (4+4 pin)
Yes
CPU power cable length
60 cm
ATX power connector (20+4 pin)
Yes
PCI Express connector
Yes
Cabling type
Fully-ular
Performance
80 PLUS certification*
80 PLUS Gold
Supported motherboard form factors
ATX
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
ATX version
3.1
EPS version
2.92
Performance
Silent e
Yes
Noise level
34.3 dB
Bearing technology
Rifle
Mean time between failures (MTBF)
100000 h
Design
Product colour
Black
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan speed
0 - 2700 RPM
On/off switch
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Packaging content
Cables included
AC, CPU, PATA, PCIe, SATA
Cable tie(s) included
Yes
Certificates
Compliance certificates
BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RoHS, cTUVus, UKCA, WEEE
Weight & dimensions
Width
150 mm
Depth
160 mm
Height
86 mm
Weight
1.92 kg
Packaging data
Package width
220 mm
Package depth
284 mm
Package height
100 mm
Package weight
3.19 kg
Package type
Box
Technical details
Sustainability compliance
Yes
Sustainability certificates
ENERGY STAR, ErP, Triman
Logistics data
Shipping (inner) case length
29.8 cm
Shipping (inner) case width
42.6 cm
Shipping (inner) case height
24.3 cm
Shipping (inner) case net weight
12.7 kg
Products per shipping (inner) case
4 pc(s)
Additional Information
| EAN/UPC | 4260052190166 |
|---|---|
| MPN | BN346 |
| BRAND | BEQUIET |
