Laptop Parts & Accessories

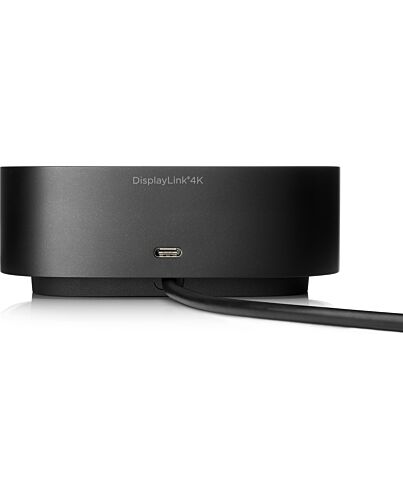

HP USB-C/A Universal Dock G2
£282.66
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Universal docking for legacy and current notebooks
Get to work fast with one cable f your USB-A- and USB-C™-enabled notebooks[1] to your displays, devices, and wired network with the flexible, compact HP USB-C/A Universal Dock G2. The dock is driven by DisplayLink and compatible with notebooks f HP, Apple, Dell, Lenovo, and more.[2]
Get to work fast with one cable f your USB-A- and USB-C™-enabled notebooks[1] to your displays, devices, and wired network with the flexible, compact HP USB-C/A Universal Dock G2. The dock is driven by DisplayLink and compatible with notebooks f HP, Apple, Dell, Lenovo, and more.[2]
Key Features
- Designed with universal compatibility in mind, this dock works with both HP and non-HP USB-A-, USB-C™-, and Thunderbolt™-enabled notebooks.[1]
- Add your accessories and up to three 4K displays[3] to the dock. Then simply connect it to your notebook[1] through a single USB-C™ cable to access your devices and charge your PC.
- Use the included USB-A Adapter to connect your USB notebook to the dock and access your accessories and up to two 4K displays.[4] Use the optional HP 4.5 mm and USB-C Dock Adapter G2[5] for legacy device barrel charging.
- Help IT secure and remotely manage your deployed commercial HP notebooks[1] and the dock with advanced network manageability features that include PXE Boot, LAN/WLAN switching, and WoL and MAC Address Pass-Through in all power states.
- Reclaim your desk with a compact dock that takes up only 5 x 5 inches of space.
- Empower your IT to manage and track your docks by product name, serial number, and MAC Address f anywhere with the time-saving, easy-to-use Electronic Tag (eTag) asset management tool.[6]
- Updating your dock fleet has never been easier. IT can save time by pushing dock updates to managed notebooks for later installation on the dock, even when they’re disconnected f each other.[7]
Reasons To Buy
Future-proof your fleet
Designed with universal compatibility in mind, this dock works with both HP and non-HP USB-A-, USB-C™-, and Thunderbolt™-enabled notebooks.[1]Single-cable solution
Add your accessories and up to three 4K displays[3] to the dock. Then simply connect it to your notebook[1] through a single USB-C™ cable to access your devices and charge your PC.Backward compatibility
Use the included USB-A Adapter to connect your USB notebook to the dock and access your accessories and up to two 4K displays.[4] Use the optional HP 4.5 mm and USB-C Dock Adapter G2[5] for legacy device barrel charging.Specifications
Ports & interfaces
Connectivity technology*
Wired
Host interface*
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
4
HDMI ports quantity*
1
HDMI version
2.0
DisplayPorts quantity
2
Microphone in*
No
Combo headphone/mic port
Yes
Network
Ethernet LAN*
Yes
Ethernet LAN (RJ-45) ports
1
Performance
Colour name
Black
Card reader integrated*
No
Cable lock slot
Yes
Product colour*
Black
Country of origin
China, Thailand, Taiwan
Compatibility
Compatible with HP ProBook 450 G7 Notebook PC; HP ProBook 440 G7 Notebook PC; HP ProBook 430 G7 Notebook PC; HP ZHAN 66 Pro 14 G3 Notebook PC; HP ZHAN 66 Pro 15 G3 Notebook PC; HP ProBook 450 G6 Notebook PC; HP ProBook 440 G6 Notebook PC; HP ProBook 430 G6 Notebook PC; HP ProBook x360 440 G1 Notebook PC; HP ProBook 445R G6 Notebook PC; HP ProBook 455R G6 Notebook PC; HP ProBook 445 G6 Notebook PC; HP ProBook 455 G6 Notebook PC; HP ProBook 470 G5 Notebook PC; HP ProBook 450 G5 Notebook PC; HP ProBook 440 G5 Notebook PC; HP ProBook 430 G5 Notebook PC; HP ProBook 455 G5 Notebook PC; HP ProBook 640 G5 Notebook PC; HP ProBook 650 G5 Notebook PC; HP ProBook 640 G4 Notebook PC; HP ProBook 650 G4 Hex Core Notebook PC; HP ProBook 650 G4 Notebook PC; HP ProBook 645 G4 Notebook PCHP Pro x2 612 G2; HP EliteBook 840 G6 Healthcare Edition Notebook PC; HP EliteBook 840 G5 Healthcare Edition Notebook PC; HP Elite Dragonfly Notebook PC; HP EliteBook x360 1040 G6 Notebook PC; HP EliteBook x360 1030 G4 Notebook PC; HP EliteBook x360 1040 G5 Notebook PC; HP Elite x2 G4; HP EliteBook x360 1030 G2 Notebook PC; HP EliteBook x360 1020 G2 Notebook PC; HP EliteBook x360 830 G6 Notebook PC; HP EliteBook x360 830 G5 Notebook PC; HP EliteBook 830 G6 Notebook PC; HP EliteBook 836 G6 Notebook PC; HP EliteBook 840 G6 Notebook PC; HP EliteBook 850 G6 Notebook PC; HP EliteBook 745 G6 Notebook PC; HP EliteBook 745 G5 Notebook PC; HP EliteBook 755 G5 Notebook PC; HP EliteBook 840 G5 Notebook PC; HP EliteBook 850 G5 Notebook PC; HP EliteBook 840r G4 Notebook PC; HP EliteBook 830 G5 Notebook PC; HP EliteBook 735 G6 Notebook PC; HP EliteBook 735 G5 Notebook PC; HP ZBook 14u G6 Mobile Workstation; HP ZBook 15u G6 Mobile Workstation; HP ZBook 15 G6 Mobile Workstation; HP ZBook 15 G5 Mobile Workstation; HP ZBook 17 G6 Mobile Workstation; HP ZBook 17 G5 Mobile Workstation; HP ZBook 14u G5 Mobile Workstation; HP ZBook 15u G5 Mobile Workstation; HP EliteBook 1050 G1 Notebook PC; HP ZBook Studio G5 Mobile Workstation; HP ZBook x2 G4 Detachable Workstation; HP ZBook Studio x360 G5 Convertible Workstation; HP Chebook x360 14 G1; HP Chebook x360 11 G2 EE; HP Chebook 14A G5; HP ProBook 430 G4 Notebook PC; HP EliteBook 840 G7 Notebook PC; HP EliteBook 840 G8 Notebook PC; HP EliteBook 850 G7 Notebook PC
HP segment
Business
Power
Power source type
USB
Power supply
100 W
Output voltage
20 V
Output current
5 A
Software
Windows operating systems supported
Windows 7, Windows 10
Mac operating systems supported
MacOS
Linux operating systems supported
Ubuntu 18.04 LTS
Other operating systems supported
CheOS
Weight & dimensions
Width
122 mm
Depth
122 mm
Height
45 mm
Weight
695 g
Brand-specific features
HP GTIN (EAN/UPC) with options
(ABB) 193905208715; (ABU) 193905208760
HP GTIN (EAN/UPC)
193905208715, 193905208760
Technical details
Box contents
HP USB-C/A Universal Dock G2; Documentation
General Product Safety Regulation (GPSR) URL
Logistics data
Harmonized System (HS) code
84733020
Other features
Compatible operating systems
Windows 7; Windows 10; Che™ OS; MacOS; Ubuntu Linux v18.04
UNSPSC-code
43211612
Special features
4K capability
Additional Information
| EAN/UPC | 193905208760 |
|---|---|
| MPN | 5TW13AA#ABU |
| BRAND | HP |
Disclaimer
[1] For USB-C™ functionality, host PC must support the DisplayPort™ Alt e protocol through its USB-C™ port. Thunderbolt™-enabled notebooks will function at USB-C™ speeds. Charging and port tion is supported on notebooks that have implemented USB-C™ industry specifications. Power button to turn on or wake the system, Wake-on LAN f warm and cold dock, Wake-on LAN f S4/S5, and MAC Address Pass-Through S0, S3, S4, S5 warm and cold dock features only function on HP or HP-supported notebooks. HP does not provide Ethernet and audio drivers on Mac PCs.
[2] Based on HP internal testing on select non-HP notebook els compatible with USB-C™ industry standards. Certain Alt e features are not supported, such as power button, MAC Address Pass-Through, Wake-on LAN, and OOB Wake on LAN. Visit the HP Support page to determine your HP notebook's wattage and port specifications. Visit the support page of your non-HP notebook to determine its wattage and port specifications.
[3] Three 4K displays supported only on Thunderbolt™- or USB-C™-with-video-enabled notebooks. Supports three displays including the notebook screen.
[4] Support for two displays includes one notebook screen and one external display or two external displays.
[5] Sold separately.
[6] WMI installation required. Requires Windows 7 or 10.
[7] Internet connection required and sold separately. Managed PC must be running Windows 10.
[2] Based on HP internal testing on select non-HP notebook els compatible with USB-C™ industry standards. Certain Alt e features are not supported, such as power button, MAC Address Pass-Through, Wake-on LAN, and OOB Wake on LAN. Visit the HP Support page to determine your HP notebook's wattage and port specifications. Visit the support page of your non-HP notebook to determine its wattage and port specifications.
[3] Three 4K displays supported only on Thunderbolt™- or USB-C™-with-video-enabled notebooks. Supports three displays including the notebook screen.
[4] Support for two displays includes one notebook screen and one external display or two external displays.
[5] Sold separately.
[6] WMI installation required. Requires Windows 7 or 10.
[7] Internet connection required and sold separately. Managed PC must be running Windows 10.
