Computer Cables

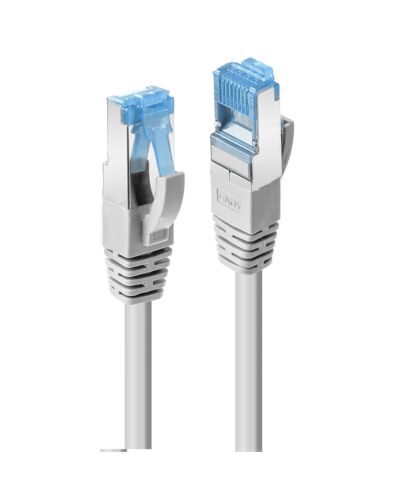

Lindy 3m Cat.6A S/FTP LSZH Network Cable, Grey
£3.67
Lindy 3m Cat.6A S/FTP LSZH Network Cable, Grey, 3 m, Cat6a, S/FTP (S-STP), RJ-45, RJ-45, Grey
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the /IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the /IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White
Key Features
- Twisted Pair Patch Cable with RJ45 connectors
- Cat.6A S/FTP PIMF, LSZH
- Integrated snagless connector for latch protection
- Gold plated pins for better conductivity and elimination of signal loss
Specifications
Features
Product colour*
Grey
Cable length*
3 m
Cable standard*
Cat6a
Cable shielding*
S/FTP (S-STP)
Connector 1*
RJ-45
Connector 2*
RJ-45
Connector 1 gender*
Male
Connector 2 gender*
Male
Connector contacts plating
Nickel/Gold
Connector shielding
Yes
Connector shield material
Aluminium
Jacket material
Low smoke zero halogen (LSZH)
Cable shape
Round
Conductor material
Copper
Cabling technology
10/100/1000Base-T(X)
AWG wire size
27
Data transfer rate
1000 Mbit/s
Frequency
500 MHz
Features
Bend radius (min)
7.2 cm
Nominal attenuation
49.3dB/100m @ 500MHz
Operational conditions
Operating temperature (T-T)
-10 - 60 °C
Storage temperature (T-T)
-20 - 75 °C
Certificates
Certification
RoHS, REACH, UL
Weight & dimensions
Outer diameter
6 mm
Connector 1 dimensions (WxDxH)
11.6 x 21.5 x 8.3 mm
Connector 2 dimensions (WxDxH)
11.6 x 21.5 x 8.3 mm
Packaging content
Quantity per pack
1 pc(s)
Packaging data
Package type
Polybag
Logistics data
Harmonized System (HS) code
84733080
Additional Information
| EAN/UPC | 4002888471350 |
|---|---|
| MPN | 47135 |
| BRAND | Lindy |
