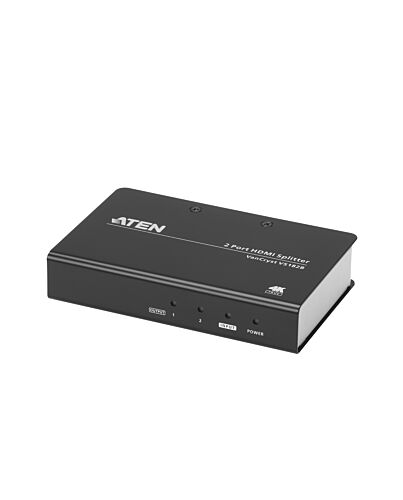

ATEN 2-Port True 4K at 60Hz (4:4:4), HDMI Splitter
£81.80
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The VS182B True 4K HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMIenabled equipment, such as DVD players, satellite set- top boxes and all HDMI monitors, displays, projectors, or TVs.
The VS182B True 4K HDMI Splitter is HDMI 2.0 compliant, 4K at 60Hz (4:4:4), and supports multiple streaming audio, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.
The VS182B True 4K HDMI Splitter is HDMI 2.0 compliant, 4K at 60Hz (4:4:4), and supports multiple streaming audio, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.
Key Features
- Connects one HDMI source to two HDMI displays at the same time
- HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible
- Supports HDR10+
- Supports max resolutions of up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4)
- Long distance transmission- up to 15 m(1920x1200)/ 1.8m (True 4K)
- Max pixel clock rate up to 600 MHz
- Max data rate up to 18 Gbps (6 Gbps per lane)
- LED indication of power status and source devices
- EDID Expert – Selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution via EDID DIP Switch, allowing users to effortlessly switch among Port 1, Default, and Auto
- Plug-and-play – No software installation required
Specifications
Ports & interfaces
Video port type*
HDMI
Video out*
2x HDMI
Video ports quantity*
3
DC-in jack
Yes
Features
Product colour
Black
Housing material
Metal
Maximum resolution*
4096 x 2160 pixels
HD type
4K Ultra HD
3D
Yes
Maximum operating distance
5 m
Maximum refresh rate
60 Hz
Bandwidth
600 MHz
HDCP version
2.2
High Dynamic Range (HDR) technology
High Dynamic Range 10+ (HDR10 Plus)
HDCP
Yes
Plug and Play
Yes
LED indicators
Yes
Power
AC input voltage
5 V
Power consumption (typical)
4.24 W
Weight & dimensions
Width
80 mm
Depth
125 mm
Height
25 mm
Weight & dimensions
Weight
500 g
Packaging data
Quantity per pack
1 pc(s)
Package width
59 mm
Package depth
239 mm
Package height
160 mm
Package weight
670 g
Packaging content
Manual
Yes
Cables included
HDMI
AC adapter included
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Logistics data
Master (outer) case net weight
10 kg
Harmonized System (HS) code
85176990
Master (outer) case width
315 mm
Master (outer) case length
490 mm
Master (outer) case height
338 mm
Master (outer) case gross weight
14.4 kg
Products per master (outer) case
20 pc(s)
Additional Information
| EAN/UPC | 4719264645402 |
|---|---|
| MPN | VS182B-AT-E |
| BRAND | ATEN |
