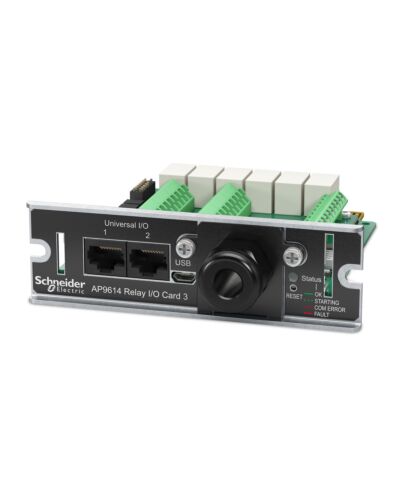

APC AP9614 UPS accessory
£314.47
APC AP9614, Relay card, 0 - 40 °C, -15 - 65 °C, 0 - 15240 m, 121 mm, 128 mm
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Dry Contact I/O Card provides 6 configurable output relays and 4 input contacts to monitor external triggers and initiate actions on external devices. The 2 Universal I/O (UIO) ports support optional environmental sensors and the Dry Contact I/O Accessory. The Dry Contact I/O Accessory provides 2 additional dry contact input and relay output interfaces. Connect the included micro-USB cable to the Card and a PC to use the dynamic Web UI. Configure UPS settings and output relay, input contact and environmental sensor actions based on status changes or UPS events.
Key Features
- Provides 6 configurable output relays and 4 input contacts
- Universal I/O ports support optional environmental sensors and Dry Contact I/O Accessory
- Monitor connected devices via dynamic Web UI
- Configure actions to status changes or UPS events via dynamic Web UI
- For UPS devices with a SmartSlot 160kVA or below
Specifications
Features
Product type*
Relay card
LED indicators
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 65 °C
Non-operating altitude
0 - 15240 m
Weight & dimensions
Width
121 mm
Depth
128 mm
Height
38 mm
Weight & dimensions
Weight
200 g
Packaging data
Package width
165 mm
Package depth
238 mm
Package height
51 mm
Package weight
440 g
Logistics data
Total carbon footprint (kg of CO2e)
270
Additional Information
| EAN/UPC | 731304733065 |
|---|---|
| MPN | AP9614 |
| BRAND | APC |
