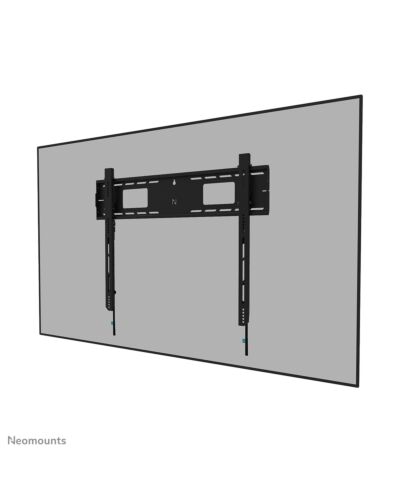

Neomounts WL30-750BL18 Heavy duty wall mount 55-98" - fixed - lockable - fast installation - TÜV
£70.57
Neomounts WL30-750BL18 Heavy duty wall mount 55-98" - fixed - lockable - fast installation - TÜV, 139.7 cm (55"), 2.49 m (98"), 100 x 100 mm, 800 x 600 mm, Steel, Black
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Neomounts WL30-750BL18 LEVEL is the ultimate solution for securely mounting an interactive or heavy weight display up to 98" with a maximum capacity of 125 kg. This heavy-duty wall mount features a high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The wall mount is designed to provide the sturdiest and most stable touch screen experience. The brackets of the WL30-750BL18 feature depth adjustable wall supports on the lower brackets for better weight distribution and maximum stability. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it.
The LEVEL-750 wall mount has a profile depth of 4,2 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x600 mm. Its quickly connectable wall plate allows for multiple screen mounting, while a clever kickstand service position provides easy access to cables and connectors. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.
The WL30-750BL18 includes an safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. It is possible to lock the brackets using a padlock (not included) for extra screen security.
For simple and effective storage, an optionally available AV-rack can be installed to the left or right side of the mount.
The LEVEL-750 wall mount has a profile depth of 4,2 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x600 mm. Its quickly connectable wall plate allows for multiple screen mounting, while a clever kickstand service position provides easy access to cables and connectors. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.
The WL30-750BL18 includes an safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. It is possible to lock the brackets using a padlock (not included) for extra screen security.
For simple and effective storage, an optionally available AV-rack can be installed to the left or right side of the mount.
Specifications
Mounting
Maximum weight capacity*
125 kg
Minimum screen size
139.7 cm (55")
Number of displays supported*
1
Maximum weight capacity (per display)*
125 kg
Maximum screen size*
2.49 m (98")
Minimum VESA mount*
100 x 100 mm
Maximum VESA mount*
800 x 600 mm
Panel mounting interface
100 x 200,100 x 100,100 x 150,120 x 120,150 x 200,200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,500 x 500,500 x 400,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,680 x 300,700 x 400,800 x 200,800 x 400,800 x 450,800 x 500,800 x 600
Mounting type*
Wall
Ergonomics
Height adjustment
Yes
Height adjustment range
0 - 10 mm
Cable management
Yes
Type
Fixed
Distance to the wall (max)
4.2 cm
Design
Product colour*
Black
Housing material
Steel
Technical details
Country of origin
China
Lockable
Padlock not included
Weight & dimensions
Width
886 mm
Depth
42 mm
Depth (max)
4.2 cm
Height
684 mm
Weight
6.3 kg
Packaging data
Package width
928 mm
Package depth
61 mm
Package height
209 mm
Package weight
7.7 kg
Logistics data
Master (outer) case width
946 mm
Master (outer) case length
227 mm
Master (outer) case height
201 mm
Master (outer) case gross weight
23.7 kg
Master (outer) case net weight
18.9 kg
Products per master (outer) case
3 pc(s)
Harmonized System (HS) code
7326909890
Products per pallet (EU)
90 pc(s)
Additional Information
| EAN/UPC | 8717371443306 |
|---|---|
| MPN | WL30-750BL18 |
| BRAND | NEOMOUNTS |
