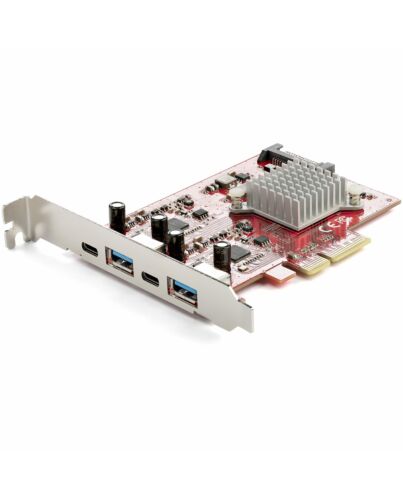

StarTech.com 4-Port USB PCIe Card - 10Gbps USB PCI Express Expansion Card w/ 2 Controllers - 2x USB-C & 2x USB-A ports (USB 3.2/3.1 Gen 2) - USB/USB-C PCI-e Card - Full Profile
£114.16
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
2x USB 3.2 Gen 2 (10Gbps) Type-A | 2x USB 3.2 Gen 2 (10Gbps) Type-C
This 4-port USB 3.2 Gen 2 (10Gbps) combo card makes it easy to add to the performance and connectivity of your computer. The USB 3.2 card offers two USB Type-C™ port (10Gbps), and two traditional USB Type-A ports (10Gbps).
By offering two different USB port types, you can easily connect a variety of USB devices to your desktop computer.
Because the card offers 10Gbps USB ports, you can save time and avoid the performance bottlenecks that are often associated with other connectivity technologies.
USB 3.2 Gen 2 (10Gbps) is also known as USB 3.1 (10Gbps).
Work faster and prepare for the future
This versatile PCI Express combo card leverages the performance potential of USB 3.2 Gen 2 (10Gbps) to help you work faster. The USB ports offer a data throughput of up to 10Gbps, so you can spend less time waiting for file transfers to complete or for access to your external peripherals.
Connect different types of USB devices
Now you can easily add a variety of types and speeds (generations) of USB ports to your desktop or server, using a single adapter card. The card features:
• Two external USB-C port (USB 10Gbps)
• Two external USB-A ports (USB 10Gbps)
With a range of port types, the card lets you bridge the gap between devices that use different connectors. You can simultaneously connect and access USB Type-A and USB Type-C devices, while using only a single PCI Express expansion slot.
By adding two types of USB ports in one combo card, you can free up space in your PC case, and eliminate the nuisance of having different cards for different USB devices.
Connect your older USB devices
Connecting your older peripherals isn't a problem. This 4-port USB 3.2 card is backward compatible with legacy USB 3.2 Gen 1, 2.0 and 1.1 devices, so you can eliminate the added expense and aggravation of purchasing new devices.
USB 3.2 Gen 1 is also known as USB 3.0 (5Gbps).
The PEXUSB312A2C2V is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: The card does not support DP alt mode or USB Power Delivery.
The StarTech.com Advantage
This 4-port USB 3.2 Gen 2 (10Gbps) combo card makes it easy to add to the performance and connectivity of your computer. The USB 3.2 card offers two USB Type-C™ port (10Gbps), and two traditional USB Type-A ports (10Gbps).
By offering two different USB port types, you can easily connect a variety of USB devices to your desktop computer.
Because the card offers 10Gbps USB ports, you can save time and avoid the performance bottlenecks that are often associated with other connectivity technologies.
USB 3.2 Gen 2 (10Gbps) is also known as USB 3.1 (10Gbps).
Work faster and prepare for the future
This versatile PCI Express combo card leverages the performance potential of USB 3.2 Gen 2 (10Gbps) to help you work faster. The USB ports offer a data throughput of up to 10Gbps, so you can spend less time waiting for file transfers to complete or for access to your external peripherals.
Connect different types of USB devices
Now you can easily add a variety of types and speeds (generations) of USB ports to your desktop or server, using a single adapter card. The card features:
• Two external USB-C port (USB 10Gbps)
• Two external USB-A ports (USB 10Gbps)
With a range of port types, the card lets you bridge the gap between devices that use different connectors. You can simultaneously connect and access USB Type-A and USB Type-C devices, while using only a single PCI Express expansion slot.
By adding two types of USB ports in one combo card, you can free up space in your PC case, and eliminate the nuisance of having different cards for different USB devices.
Connect your older USB devices
Connecting your older peripherals isn't a problem. This 4-port USB 3.2 card is backward compatible with legacy USB 3.2 Gen 1, 2.0 and 1.1 devices, so you can eliminate the added expense and aggravation of purchasing new devices.
USB 3.2 Gen 1 is also known as USB 3.0 (5Gbps).
The PEXUSB312A2C2V is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: The card does not support DP alt mode or USB Power Delivery.
The StarTech.com Advantage
Key Features
- HIGH PERFORMANCE: 4 Port USB PCIe card with dual ASM3142 controllers with up to 20Gbps total bandwidth across 4 ports; 2x USB-A (10Gbps) 2x USB-C (10Gbps) hub; Supports USB 3.1 Gen 2/USB 3.2 Gen 2x1
- TRANSFER SPEEDS UP TO 10Gbps: USB-A & USB-C PCIe card adapter supports Multiple INs maintaining max bandwidth with mixed speed devices; UASP support; ideal for use with USB devices & external storage like SSDs, HDDs, NVMe drives; Works w/ USB 3.1/3.0/2.0
- OPTIONAL POWER: USB PCIe expansion card with SATA power supplies supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W per USB Type-C port & 5V 0.9A/4.5W per USB Type-A port
- COMPATIBILITY: USB C add-on card installs in full-profile PCIe 3.0 (x4 slot) desktop/server; lower performance with PCI-e 2.0; Windows/Linux/macOS auto driver install (Windows 8 & up)
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; These this USB-A & USB-C combo PCI Express Host Controller card is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Specifications
Ports & interfaces
Host interface*
PCIe
Output interface*
USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card standard
PCIe 3.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
Internal SATA ports quantity
1
Design
Internal*
Yes
Product colour
Red
Features
Chipset
ASMedia - ASM3142, ASMedia - ASM2806
Data transfer rate (max)
10 Gbit/s
UASP support
Yes
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-20 - 80 °C
Operating relative humidity (H-H)
15 - 90%
System requirements
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Server operating systems supported
Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2019
Technical details
Compliance certificates
CE, RoHS
Weight & dimensions
Width
85 mm
Depth
112 mm
Height
22 mm
Weight
80 g
Packaging data
Mounting brackets included
Yes
Quick installation guide
Yes
Package width
142 mm
Package depth
175 mm
Package height
30 mm
Package weight
141 g
Logistics data
Harmonized System (HS) code
84733020
Products per master (outer) case
60 pc(s)
Master (outer) case width
374 mm
Master (outer) case length
365 mm
Master (outer) case height
500 mm
Additional Information
| EAN/UPC | 0065030887076 |
|---|---|
| MPN | PEXUSB312A2C2V |
| BRAND | STARTECH |
