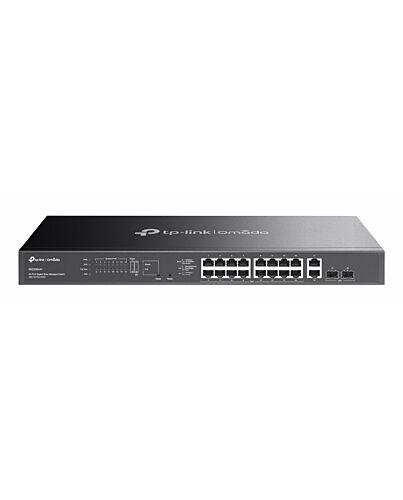

TP-Link Omada ES220GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet
£209.52
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Omada Cloud Essentials - A Free and Easy Cloud-Based Network Mnagement
Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.
Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.
Key Features
- 16× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
- 2× Gigabit RJ45 port, 2× Gigabit SFP port
- 250W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port lation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack-mountable design
Specifications
Management features
Switch type*
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
Unified static configuration
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
18
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
18
SFP ule slots quantity
2
Power connector
AC-in jack
Network
Networking standards*
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
No
Zero Touch Provisioning (ZTP)
Yes
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Fast leave
Yes
VLAN support
Yes
Virtual LAN features
MTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs
32
Data transmission
Switching capacity*
40 Gbit/s
Forwarding rate
29.76 Mpps
MAC address table*
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
15000
Packet buffer memory
4 MB
Security
DHCP features
DHCP client
IGMP snooping
Yes
Loop protection
Yes
Queue scheduling algorithms
Weighted Round Robin (WRR)
Design
Rack mounting*
Yes
Stackable*
No
Design
Product colour
Black
LED indicators
Yes
Number of fans
2 fan(s)
Performance
Flash memory
64 MB
Noise level
41.5 dB
upgradeable
Yes
Mean time between failures (MTBF)
310550.7 h
Power
Power source*
AC
Power supply included*
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
289.7 W
Surge protection
Yes
Surge protection voltage
6 kV
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Power over Ethernet (PoE) type supported
PoE+
Power over Ethernet plus (PoE+) ports quantity
16
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
250 W
Operational conditions
Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
984.88 BTU/h
Weight & dimensions
Width
440 mm
Depth
180 mm
Height
44 mm
Packaging content
Cables included
AC
User guide
Yes
Rack mount kit
Yes
Packaging data
Package type
Box
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Additional Information
| EAN/UPC | 1210002607858 |
|---|---|
| MPN | ES220GMP |
| BRAND | TP-LINK |
