Components

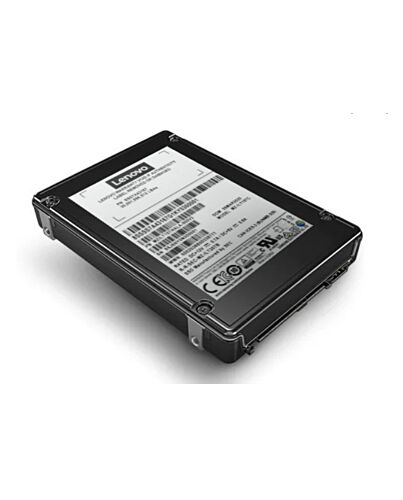

Lenovo 4XB7A80319 internal solid state drive 1.92 TB 2.5" SAS V-NAND TLC
£6,972.38
Lenovo 4XB7A80319, 1.92 TB, 2.5", 24 Gbit/s
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ThinkSystem PM1653 Read Intensive SAS 24Gb SSDs, in capacities of up to 30.72 TB, are next-generation high-performance 24Gb SAS self-encrypting SSDs (SEDs) suitable for a wide range of applications of running on ThinkSystem servers.
Unlike 6 Gb/s SATA drives, the 24 Gb/s SAS interface on these drives supports full duplex data transfer for higher performance, and enterprise-level error recovery for better availability. By combining the enhanced reliability of Samsung NAND flash memory silicon with NAND Flash management technologies, PM1653 SSDs deliver endurance of up to 1 drive writes per day (DWPD) for 5 years, which is suitable for many enterprise applications with read-intensive storage characteristics.
Self-encrypting drives (SEDs) provide benefits by encrypting data on-the-fly at the drive level with no performance impact, by providing instant secure erasure thereby making the data no longer readable, and by enabling auto-locking to secure active data if a drive is misplaced or stolen f a system while in use. These features are essential for many businesses, especially those storing customer data.
Unlike 6 Gb/s SATA drives, the 24 Gb/s SAS interface on these drives supports full duplex data transfer for higher performance, and enterprise-level error recovery for better availability. By combining the enhanced reliability of Samsung NAND flash memory silicon with NAND Flash management technologies, PM1653 SSDs deliver endurance of up to 1 drive writes per day (DWPD) for 5 years, which is suitable for many enterprise applications with read-intensive storage characteristics.
Self-encrypting drives (SEDs) provide benefits by encrypting data on-the-fly at the drive level with no performance impact, by providing instant secure erasure thereby making the data no longer readable, and by enabling auto-locking to secure active data if a drive is misplaced or stolen f a system while in use. These features are essential for many businesses, especially those storing customer data.
Specifications
Features
SSD capacity*
1.92 TB
SSD form factor*
2.5"
Interface*
SAS
NVMe*
No
Memory type*
V-NAND TLC
Component for*
Server/workstation
Hardware encryption*
Yes
Data transfer rate
24 Gbit/s
Random read (4KB)
420000 IOPS
Random write (4KB)
95000 IOPS
Read latency
120 µs
Write latency
45 µs
S.M.A.R.T. support
Yes
Hot-swap
Yes
Mean time between failures (MTBF)
2000000 h
Certification
UL
TUV
FCC
IC
CB
CE Mark
C-Tick Mark
BSMI (Taiwan)
KCC (Korea EMI)
VCCI
Power
Power consumption (read)
11.5 W
Power consumption (write)
14.7 W
Weight & dimensions
Width
70 mm
Depth
100 mm
Height
15 mm
Weight
160 g
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Maximum operating altitude
4572 m
Other features
Compliance certificates
RoHS
Additional Information
| EAN/UPC | 889488600533 |
|---|---|
| MPN | 4XB7A80319 |
| BRAND | LENOVO |
