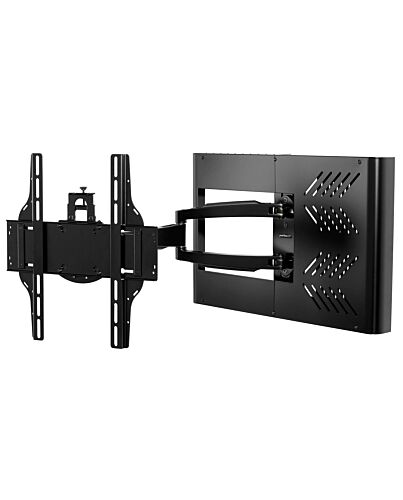

Peerless HA746-STB TV mount/stand 139.7 cm (55") Black
£354.32
Peerless HA746-STB, 139.7 cm (55"), 100 x 200 mm, 400 x 400 mm, -5 - 15°, -90 - 90°, Black
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Hospitality Wall Arm Mount with Set Top Box (STB) Enclosure was designed with theHospitality market in mind, offering installation flexibility and an aesthetically pleasingsolution for cable management and electronic storage. This articulating wall mount canbe installed easily on single and dual metal studs, wood or concrete and comes completewith attachment hardware. The enclosure provides a secure, vented storage area forelectronics to avoid the mess of tangled cables and exposed cable boxes in guest rooms/public areas. For maintenance purposes, simply remove the tamper resistant screws andthe enclosure covers can easily be removed, allowing for quick access to the STB withoutdisturbing the TV or mount itself. Additionally, the mount's open wall plate design allowsfor easy access to the wall or junction box.
Key Features
- Easily installs on single and dual metal studs, wood or concrete (all fasteners included)
- Unique cable management system
- Covers can easily be removed forservicibility to STB/cable box withoutthe need to remove arm or TV
- Compatible to many 43"-55" TVs,up to 400 x 400mm pattern*
- Fits various STB/media boxes up to 13.5"W x 7.5"L x 1.6"D
- Compact enough to fit within a 24"Wx 16"H wall opening (wall enclosuremeasures 23"W x 14.84" x 2.25")
- Open wall plate design for access to wall or junction box with 5" of lateral adjustment
- Front fastening covers for recessed areas
- 90 degrees of pivot left or right, up to 5° downward tilt for maximum guest viewing experience
- Installs on wall, recessed in wall or on tech drop
Specifications
Mounting
Maximum weight capacity*
36 kg
Minimum screen size
109.2 cm (43")
Number of displays supported*
1
Maximum screen size*
139.7 cm (55")
Minimum VESA mount*
100 x 200 mm
Maximum VESA mount*
400 x 400 mm
Panel mounting interface
100 x 200,400 x 400 mm
Mounting type*
Wall
Ergonomics
Tilt adjustment
Yes
Tilt angle range
-5 - 15°
Swivel angle range
-90 - 90°
Pivot angle
-90 - 90°
Cable management
Yes
Distance to the wall (max)
56.4 cm
Distance to the wall (min)
10.1 cm
Design
Product colour*
Black
Technical details
Compliance certificates
RoHS
Weight & dimensions
Width
584 mm
Depth (min)
10.1 cm
Depth (max)
56.4 cm
Height
425 mm
Weight
9.5 kg
Packaging data
Package width
724 mm
Package depth
127 mm
Package height
483 mm
Package weight
11.3 kg
Logistics data
Harmonized System (HS) code
85299097
Additional Information
| EAN/UPC | 0735029314226 |
|---|---|
| MPN | HA746-STB |
