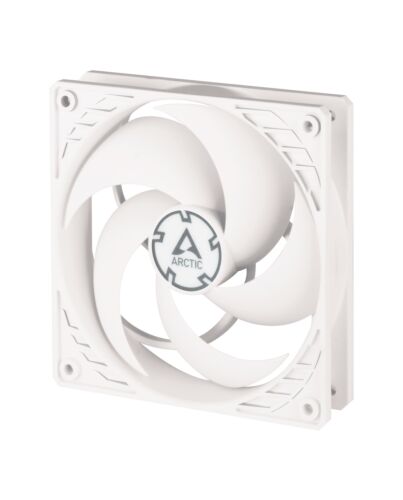

ARCTIC P12 PWM PST (White/White) Pressure-optimised 120 mm Fan with PWM PST
£5.40
ARCTIC P12 PWM PST (White/White) Pressure-optimised 120 mm Fan with PWM PST, Fan, 12 cm, 200 RPM, 1800 RPM, 0.3 sone, 95.65 m³/h
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.
Key Features
- Optimised for static pressure
- Ideal choice on heatsinks, radiators and (partly-) covered case vents
- Push- or pull-configuration
- PWM Sharing Technology (PST) regulates fan speed synchronously
- Newly developed, very quiet motor
- Extended life span
- Available in three sleek colors
Reasons To Buy

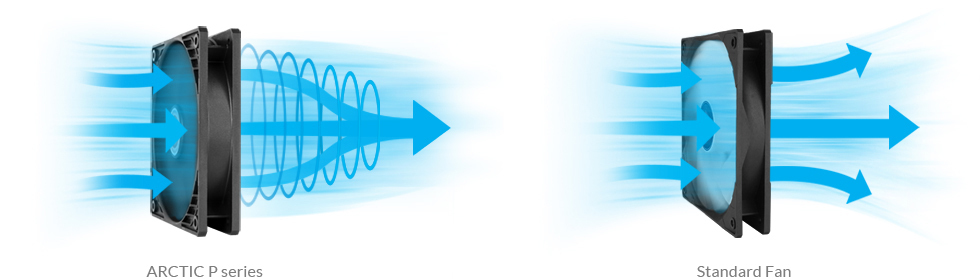

Optimised for Static Pressure

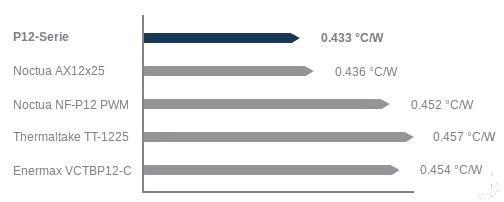

Strong Cooling Performance
In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind.

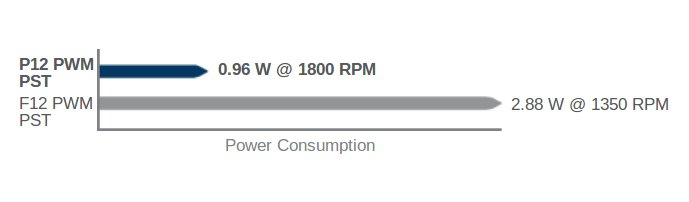

More Efficient Technology

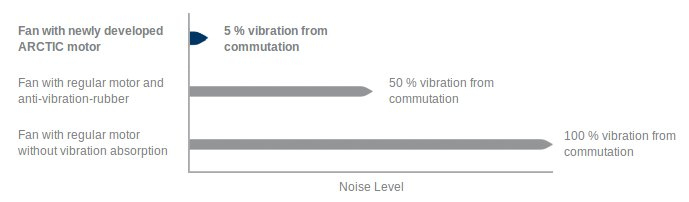

Maximum Quietness, Minimum Vibration
Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
Extended Life Span
The new ARCTIC motor has a four times longer service life through its low coil temperature.
Consequently, we have extended the warranty to 10 years.
200 to 1800 RPM regulated via PWM PST
In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.

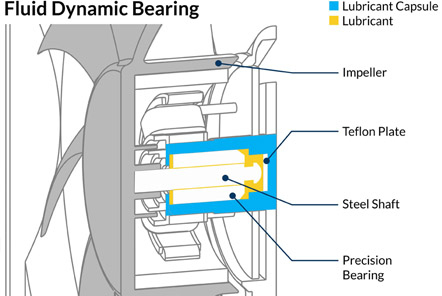

High Quality Bearing
Specifications
Performance
Suitable location*
Computer case
Type*
Fan
Fan diameter
12 cm
Supported processor sockets
Not supported
Compatible processor series
Not supported
Rotational speed (min)
200 RPM
Rotational speed (max)
1800 RPM
Noise level
0.3 sone
Maximum airflow
56.3 cfm
Airflow
95.65 m³/h
Maximum air pressure
2.2 mmH2O
Pulse-width modulation (PWM) support
Yes
Bearing type
Fluid Dynamic Bearing (FDB)
Design
Product colour*
White
Number of fans
1 fan(s)
Number of fan blades
5

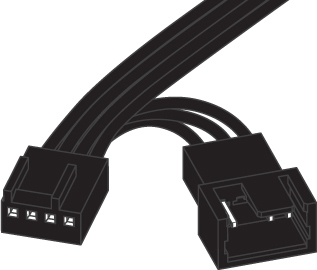

Fan connector
4-pin + 4-pin
Power
Power consumption (typical)
0.96 W
Voltage
12 V
Power
Starting voltage
3.9 V
Rated current
0.08 A
Weight & dimensions
Width
120 mm
Depth
120 mm
Height
25 mm
Weight
145 g
Cable length
0.4 m
Package width
123 mm
Package depth
123 mm
Package height
27 mm
Package weight
176 g
Packaging content
Package type
Box
Screws included
Yes
Number of screws
4
Other features
Country of origin
China
Logistics data
Harmonized System (HS) code
84733080
Additional Information
| EAN/UPC | 4895213702263 |
|---|---|
| MPN | ACFAN00170A |
