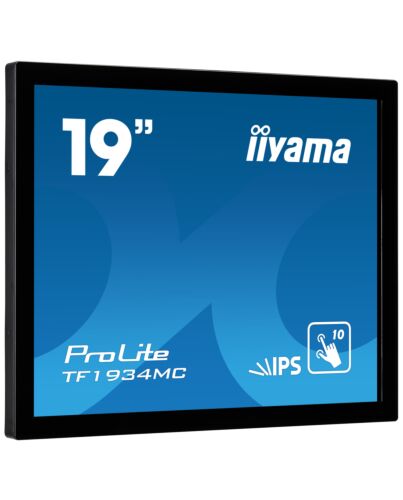

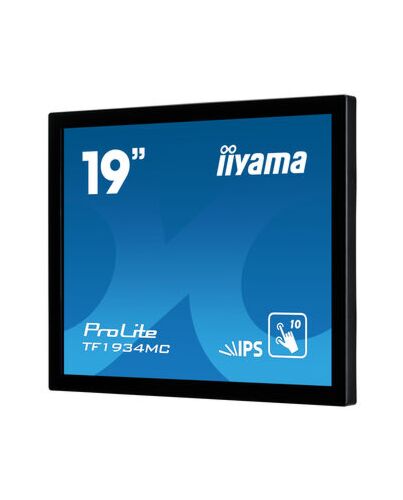

iiyama ProLite TF1934MC-B7X computer monitor 48.3 cm (19") 1280 x 1024 pixels SXGA LED Touchscreen B
£450.91
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
ProLite TF1934MC-B7X uses Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect interactive display for Interactive Digital Signage. In addition to the superb image quality, the screen comes with an IP65 Rating, making it dust and water resistant. Equipped with a rugged bezel making it suitable for demanding environments. The ProLite TF1934MC-B7X is the ideal screen for the kiosk integrators and a solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations. For ease of integration, the TF1934MC-B7X can be equipped with optional external mounting brackets ( OMK1-1 ) making it an ideal solution for kiosk integrators and Instore Retail.
Key Features
- anti-fingerprint coating, touch through-glass
- IP65 (front)
- OSD key lock
Reasons To Buy
IPS Technology
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, estate office, in-store for POS or restaurants.Touch technology - Capacitive
Scratch resistance
Anti-fingerprint coating
Specifications
Display
Display diagonal*
48.3 cm (19")
Display resolution*
1280 x 1024 pixels
HD type*
SXGA
Native aspect ratio*
5:4
Display technology*
LED
Panel type*
IPS
LED backlight
Yes
Backlight type
LED
Touchscreen*
Yes
Touchscreen technology
Projected capacitive system
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
Display brightness (typical)
350 cd/m²
Display brightness
315 cd/m²
Response time*
14 ms
Response time measurement type
GTG (Gray to Gray)
Screen shape*
Flat
Supported graphics resolutions
1280 x 1024 (SXGA)
Aspect ratio
5:4
Contrast ratio (typical)*
1000:1
Contrast ratio (dynamic)
1000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours*
16.7 million colours
Pixel pitch
0.294 x 0.294 mm
Horizontal scan range
31.4 - 80 kHz
Viewable size, horizontal
37.6 cm
Viewable size, vertical
30.1 cm
Viewable size diagonal
48 cm
Display diagonal (metric)
48 cm
Performance
NVIDIA G-SYNC*
No
AMD FreeSync*
No
Palm rejection
Yes
Multimedia
Built-in microphone
No
Built-in camera*
No
Design
Product colour*
Black
Front bezel colour
Black
Glass thickness
6 mm
Ports & interfaces
USB Touch port
Yes
VGA (D-Sub) ports quantity
1
HDMI*
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
HDCP
Yes
Ergonomics
VESA mounting*
Yes
Panel mounting interface
100 x 100 mm
Wall mountable
Yes
Ergonomics
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages
7
Power
Energy efficiency class (SDR)*
F
Energy consumption (SDR) per 1000 hours*
18 kWh
Power consumption (typical)*
21 W
Power consumption (standby)*
1.5 W
Power consumption (off)
1.5 W
AC adapter output voltage
12 V
Power supply type
External
Energy efficiency scale
A to G
Weight & dimensions
Width (with stand)
416 mm
Depth (with stand)
46.5 mm
Height (with stand)
344 mm
Weight (with stand)
4.4 kg
Width (without stand)
416 mm
Depth (without stand)
46.5 mm
Height (without stand)
344 mm
Weight (without stand)
4.4 kg
Packaging data
Package width
16.4 mm
Package depth
1.8 mm
Package height
13.5 mm
Packaging content
Cables included
AC, USB, HDMI, DisplayPort
Quick start guide
Yes
Sustainability
Sustainability certificates
ErP
Other features
International Protection (IP) code
IP65
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch els, please refer to the driver instruction file available in the downloads section.
AC adapter included
Yes
Display viewable area (HxV)
376.5 x 301.1 mm
Connection to PC
Yes
Brightness
315 cd/m²
Packaging content
AC adapter, Touch Panel Driver Disk (CD-)
Active display area (W x H)
376.5 x 301.1 mm
Weight
4.4 kg
User controls
picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, touch switch), option (reset, language, source select, display e, factory)
Touch method
stylus, finger, glove (latex)
Height
344 mm
Width
416 mm
Depth
46.5 mm
Control panel
Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Compliance certificates
CE, cULus, EAC, REACH, RoHS, WEEE
Certification
CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, REACH SVHC above 0.1%: Lead
Logistics data
Harmonized System (HS) code
85285210
Additional Information
| EAN/UPC | 4948570118403 |
|---|---|
| MPN | TF1934MC-B7X |
| BRAND | Iiyama |
