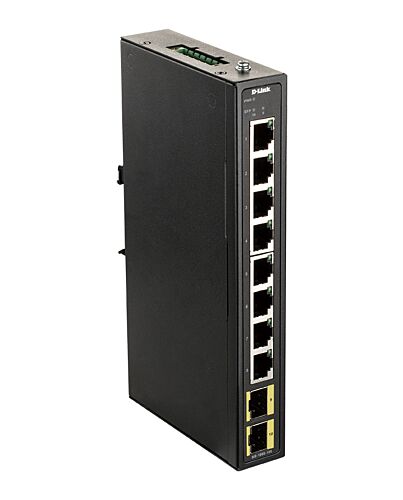

D-Link 8-port Gigabit Industrial Switch including 2 x 100/1000M SFP
£142.91
D-Link 8-port Gigabit Industrial Switch including 2 x 100/1000M SFP, Unmanaged, Gigabit Ethernet (10/100/1000), DIN rail
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Unmanaged Plug and Play
Plug in and go. The DIS-100G-5SW reliably forwards Ethernet frames.
Gigabit Connectivity with SFP slot
Designed with 4 x 100/1000Base-T ports and 1 x 100/1000BaseSFP slot to suit a range of devices and network layouts.
Officially
Certifications for vibration, shock, free-fall, NEMA‑TS2 Section 2, and electagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures f -40°C to +75°C, and can cold start f -40°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 190 x 100 x 28 mm.
Plug in and go. The DIS-100G-5SW reliably forwards Ethernet frames.
Gigabit Connectivity with SFP slot
Designed with 4 x 100/1000Base-T ports and 1 x 100/1000BaseSFP slot to suit a range of devices and network layouts.
Officially
Certifications for vibration, shock, free-fall, NEMA‑TS2 Section 2, and electagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures f -40°C to +75°C, and can cold start f -40°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 190 x 100 x 28 mm.
Key Features
- 8 x 100/1000Base-T ports, 2 x 100/1000BaseSFP slots
- Unmanaged plug-and-play simplicity
- Withstands extreme temperatures
- Tested against for vibration, shock, free-fall, EMC
Specifications
Management features
Switch type*
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
8
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
SFP ule slots quantity
2
Network
Networking standards*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Copper ethernet cabling technology
1000BASE-T
Auto MDI/MDI-X
Yes
Data transmission
Switching capacity*
20 Gbit/s
Forwarding rate
14.88 Mpps
MAC address table*
4000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9000
Transmission method
Store-and-forward
Design
Stackable*
Yes
Form factor
DIN rail
Product colour
Black
LED indicators
Yes
International Protection (IP) code
IP40
Performance
Fanless
Yes
Mean time between failures (MTBF)
392267 h
Power
Power source*
DC
DC input voltage
12 - 48 V
Input current
1 A
Power consumption (max)
7.44 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
No
Operational conditions
Operating temperature (T-T)
-20 - 65 °C
Storage temperature (T-T)
-20 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
190 mm
Depth
28 mm
Height
100 mm
Weight
498 g
Certificates
Certification
47 CFR FCC Part 15 Subpart B (Class A), ICES-003 Issue 6 (Class A)
EN 61000-4-2 ESD, EN 61000-4-3 RS, EN 61000-4-4 EFT, EN 61000-4-5 Surge, EN 61000-4-6 CS, EN 61000-4-8
IEC 60068-2-27 Shock, • IEC 60068-2-32 Freefall, IEC 60068-2-6 Vibration
CE, FCC
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 790069455612 |
|---|---|
| MPN | DIS-100G-10S |
| BRAND | D-Link |
