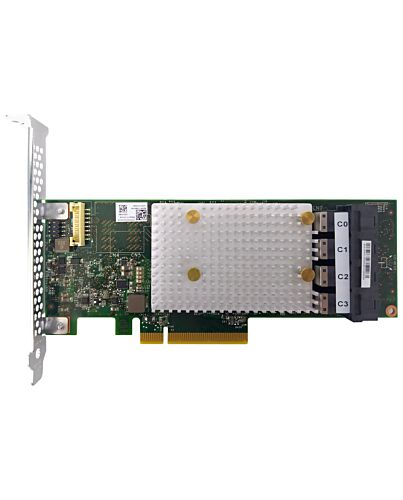

Lenovo 4Y37A72485 RAID controller PCI Express x8 3.0 12 Gbit/s
£996.25
Lenovo 4Y37A72485, SAS, Serial ATA, PCI Express x8, 0, 1, 10, 5, 50, 6, 60, 12 Gbit/s, 4000 MB, Microchip Luxor ROC PM8236
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ThinkSystem RAID 9350 family of internal 12 Gbps SAS RAID controllers are high-performance low-cost RAID-on-chip (ROC) adapters that are designed and manufactured by Lenovo. These adapters support all major RAID levels including RAID-6 and RAID-60, and include support for Lenovo management tools.
This product guide provides essential presales information to understand the ThinkSystem RAID 9350-16i and 9350-8i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
This product guide provides essential presales information to understand the ThinkSystem RAID 9350-16i and 9350-8i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
Specifications
Ports & interfaces
Supported storage drive interfaces*
SAS, Serial ATA
Host interface*
PCI Express x8
PCI Express slots version
3.0
Performance
RAID levels*
0, 1, 10, 5, 50, 6, 60
Data transfer rate
12 Gbit/s
SSD support
Yes
Internal memory
4000 MB
Chipset
Microchip Luxor ROC PM8236
JBOD function
Yes
Number of devices supported
16
Hot-swap
Yes
Performance
Certification
FCC Part 15 Class A
Australia/New Zealand (AS/NZS 3548)
Canada (ICES-003 Class B)
Europe (EN55032/EN55024)
Japan VCCI
Korea KCC
RoHS compliant
EN/IEC/UL 60950
USA (FCC 47 CFR part 15 Subpart B class B)
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Operating relative humidity (H-H)
20 - 80%
Weight & dimensions
Width
167 mm
Height
64 mm
Additional Information
| EAN/UPC | 889488588039 |
|---|---|
| MPN | 4Y37A72485 |
