Neomounts WL95-800BL1 Videowall wall mount 42-70" - pop-out - max 35 kg
£167.11
Neomounts WL95-800BL1 Videowall wall mount 42-70" - pop-out - max 35 kg, 35 kg, 106.7 cm (42"), 177.8 cm (70"), 200 x 200 mm, 600 x 400 mm, 0 - 13 mm
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

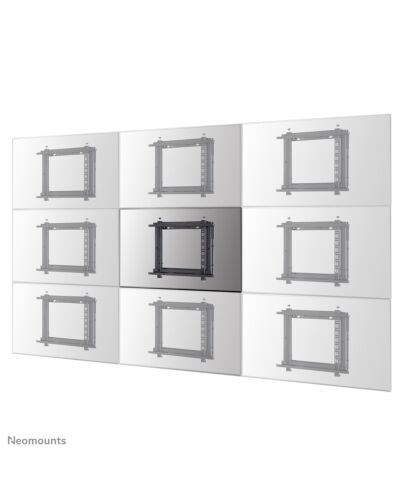

The Neomounts WL95-800BL1 is a push to pop out video wall mount for screens up to 70". The screen can be installed both in portrait and landscape orientation and additionally, toolless micro adjustment in height, depth, tilt and swivel is available for the perfect alignment.
The WL95-800BL1 has a depth of 7,8-26 cm and is suitable for screens that meet VESA hole pattern 200x200 up to 600x400 mm (landscape) or 400x600 mm (portrait). The video wall mount is packed pre-assembled and features keyhole slots to ensure fast and easy installation.
The WL95-800BL1 has a depth of 7,8-26 cm and is suitable for screens that meet VESA hole pattern 200x200 up to 600x400 mm (landscape) or 400x600 mm (portrait). The video wall mount is packed pre-assembled and features keyhole slots to ensure fast and easy installation.
Specifications
Mounting
Maximum weight capacity*
35 kg
Minimum screen size
106.7 cm (42")
Number of displays supported*
1
Maximum weight capacity (per display)*
35 kg
Maximum screen size*
177.8 cm (70")
Mounting type*
Wall
Minimum VESA mount*
200 x 200 mm
Maximum VESA mount*
600 x 400 mm
Panel mounting interface
200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,600 x 300,600 x 200,600 x 400
Ergonomics
Height adjustment
Yes
Height adjustment type
Manual
Height adjustment range
0 - 13 mm
Swivelling
Yes
Cable management
No
Tilt adjustment
Yes
Height adjustment
1.3 cm
Depth adjustment
4 mm
Width adjustment
4 cm
Distance to the wall (min)
7.8 cm
Distance to the wall (max)
26.6 cm
Design
Product colour*
Black
Housing material
Steel
Accepts padlock
No
Weight & dimensions
Width
620 mm
Depth
84 mm
Weight & dimensions
Height
510 mm
Weight
7.72 kg
Width adjustment range
0 - 40 mm
Packaging data
Package width
570 mm
Package depth
110 mm
Package height
620 mm
Package weight
9.8 kg
Package type
Box
Technical details
Package net weight
9.8 kg
Easy to install
Yes
Orientation
Landscape/Portrait
Warranty period
5 year(s)
Other features
Country of origin
China
Depth adjustment range
0 - 4 mm
Logistics data
Master (outer) case net weight
8.5 kg
Harmonized System (HS) code
7326909890
Products per pallet (EU)
24 pc(s)
Quantity per master (outer) case
1 pc(s)
Master (outer) case width
570 mm
Master (outer) case length
110 mm
Master (outer) case height
620 mm
Master (outer) case gross weight
9.8 kg
Products per master (outer) case
1 pc(s)
Additional Information
| EAN/UPC | 8717371440541 |
|---|---|
| MPN | WL95-800BL1 |
| BRAND | NEOMOUNTS |
