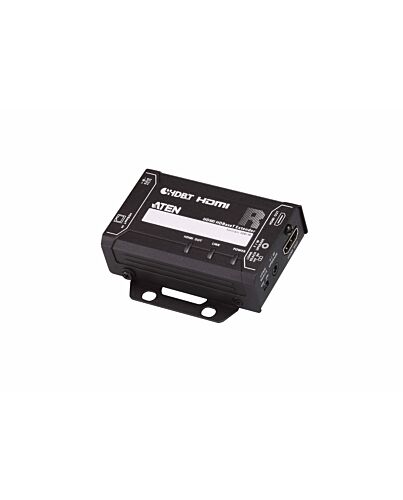

ATEN HDMI HDBaseT Samll Factor Receiver
£205.24
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ATEN VE811R HDMI HDBaseT Receiver guarantees the optimum HDMI connection up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. The VE811R meets HDMI Specification features including 3D, Deep Color, HD lossless audio formats and CEC pass through. It supports Dolby Digital 5.1, DTS HD audio and video signals at resolutions up to 4K.
1x VE811R HDMI HDBaseT Receiver
1x 0AD6-1F05-26EG Power Adapter
1x User Instructions
1x VE811R HDMI HDBaseT Receiver
1x 0AD6-1F05-26EG Power Adapter
1x User Instructions
Key Features
- HDBaseT Connectivity – extends an HDMI connection up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- HDMI (3D, Deep Color, 4K)
- HDCP 2.2 compatible
Specifications
Features
Type*
AV receiver
Maximum resolution*
4096 x 2160 pixels
Cable types supported
Cat5, Cat5e, Cat6, Cat6a
Maximum transfer distance
100 m
Maximum refresh rate
60 Hz
Bandwidth
10.2 Gbit/s
Bandwidth
340 MHz
Impedance
100 Ω
Ports & interfaces
Connectivity technology*
Wired
RJ-45 output ports
1
Number of HDMI outputs
1
Audio output
1
Power
Operating voltage
5 V
Power consumption (typical)
3.84 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
86.4 mm
Depth
73 mm
Height
24.7 mm
Weight
290 g
Packaging data
Quantity per pack
1 pc(s)
Package width
59 mm
Package depth
119 mm
Package height
160 mm
Package weight
440 g
Packaging content
Quick start guide
Yes
Logistics data
Master (outer) case width
250 mm
Master (outer) case length
325 mm
Master (outer) case height
175 mm
Master (outer) case gross weight
2.55 kg
Master (outer) case net weight
2.9 kg
Products per master (outer) case
10 pc(s)
Additional Information
| EAN/UPC | 4719264645761 |
|---|---|
| MPN | VE811R-AT-E |
