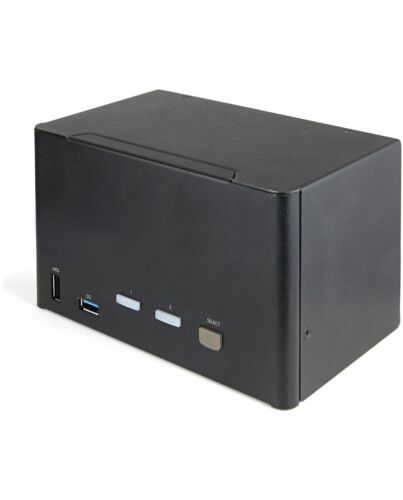

StarTech.com 2 Port Quad Monitor DisplayPort KVM Switch - 4K 60Hz UHD HDR - Desktop 4K DP 1.2 KVM wi
£528.40
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
KVM with USB | Quad Monitor | TAA Compliant | USB 3.0 Hub | DisplayPort 1.2 | Digital & Analog Audio
This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.
4K 60Hz Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and drives four large monitors at the full 4K resolution. Includes USB emulation for faster switching times to avoid disrupting your workflow. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
Windows, Mac & Linux Compatible
While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.
Easy to Operate
The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.
4K 60Hz Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and drives four large monitors at the full 4K resolution. Includes USB emulation for faster switching times to avoid disrupting your workflow. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
Windows, Mac & Linux Compatible
While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.
Easy to Operate
The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key Features
- IMPROVE EFFICIENCY: Switch between two computers with four monitors using USB and DisplayPort video f a single keyboard, monitor, and mouse using keyboard hotkeys or push buttons to switch between active computers
- QUADRUPLE 4K 60Hz UHD: DisplayPort quad screen KVM switch supports up to 4K at 60Hz on four monitors for applications like CAD/CAM, video editing and content creation; works with major brands including Dell, HP, and Lenovo
- TECH SPECS: 2 Port KVM / Quad Display / DisplayPort 1.2 / 3840 x 2160 60 Hz / HDCP 2.2 / HDR Support / 2 Port USB 3.0 Hub / 4x USB HID / Hotkey & Push Button / OS Independent / Stereo Analog + Digital Audio / DP + USB Console
- USER-FRIENDLY: KVM switch with compact & durable steel housing features large buttons & easily accessible front-mounted integrated USB 3.0 port 5Gbps (USB 3.1/3.2 Gen 1) for sharing USB devices between connected computers
- THE STARTECH.COM ADVANTAGE: This KVM is TAA compliant, and StarTech.com offers a 2-year warranty and free lifetime 24/5 multilingual technical support based in North America
Specifications
Ports & interfaces
Number of computers controlled*
2
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
DisplayPort
DisplayPorts quantity
12
DisplayPort version
1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
2
Console ports*
3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity
4
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
Audio connections
Yes
Headphone outputs
3
DC-in jack
Yes
Performance
HD type*
4K Ultra HD
Maximum resolution*
3840 x 2160 pixels
Video bandwidth
60 Hz
Data transfer rate (max)
5 Gbit/s
Scan interval
3,8,15,30 s
HDCP
Yes
Daisy chain
No
Chipset
Genesys Logic - GL3523
Audio channels
5.1
Number of displays supported
4
Design
Rack mounting*
No
Product colour*
Black
Housing material
Steel
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Mean time between failures (MTBF)
156000 h
Certification
CE, FCC, RoHS
Display
Built-in display*
No
Display
On Screen Display (OSD)
No
Power
Input voltage
100 - 240 V
Input current
1 A
Output voltage
12 V
Output current
3 A
Power consumption (typical)
36 W
External power adapter
Yes
Power plug type
Type M
Compatible power plug types
EU, JP, UK, US
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
180 mm
Depth
438 mm
Height
43 mm
Weight
959 g
Packaging data
Package width
185 mm
Package depth
250 mm
Package height
100 mm
Packaging content
Manual
Yes
Rubber feet
Yes
Other features
IP control
No
Logistics data
Harmonized System (HS) code
85176200
Master (outer) case width
325 mm
Master (outer) case length
395 mm
Master (outer) case height
275 mm
Products per master (outer) case
6 pc(s)
Additional Information
| EAN/UPC | 0065030881777 |
|---|---|
| MPN | SV231QDPU34K |
| BRAND | STARTECH |
