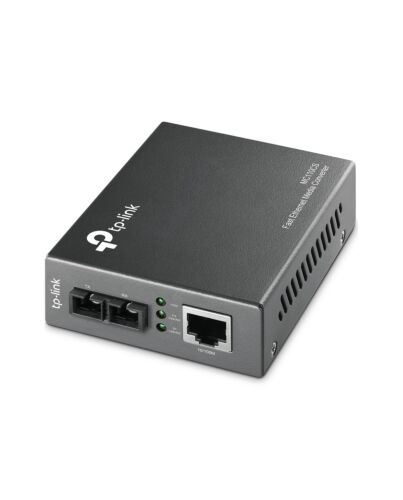

TP-Link 10/100Mbps Single-Mode Media Converter
£21.06
TP-Link 10/100Mbps Single-Mode Media Converter, 1000 Mbit/s, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Gigabit Ethernet, 1000 Mbit/s, 100BASE-FX, UTP 3, 4, 5e, 5
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
What This Product Does
The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´ system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´ system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
Key Features
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
- Provides switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
- Extends fiber distance up to 20km
Specifications
Network
Maximum data transfer rate*
1000 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
1000 Mbit/s
Fiber ethernet cabling technology
100BASE-FX
Auto MDI/MDI-X
Yes
Cabling technology
UTP 3, 4, 5e, 5
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Performance
Maximum transfer distance*
20000 m
Wavelength*
1310 nm
Features
Internal*
No
LED indicators
Power, Speed
Product colour
Black
Compliance industry standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector*
SC
Power
Power consumption (max)
1.52 W
Weight & dimensions
Width
94.5 mm
Depth
73 mm
Height
27 mm
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Packaging data
Package width
165 mm
Package depth
204 mm
Package height
65 mm
Package weight
380 g
Certificates
Certification
FCC, CE
Other features
Dimensions (WxDxH)
94.5 x 73 x 27 mm
I/O ports
1x 100M SC
1x 100M RJ45
Full duplex
Yes
Additional Information
| EAN/UPC | 6935364030407 |
|---|---|
| MPN | MC110CS |
| BRAND | TP-LINK |
