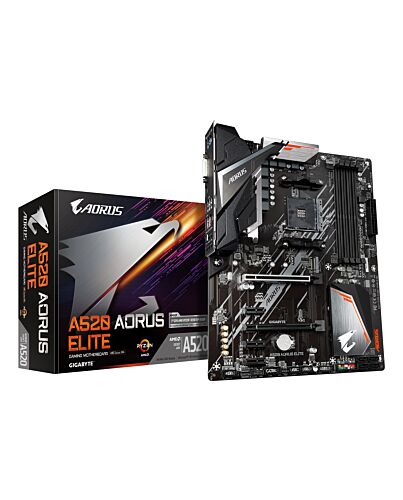

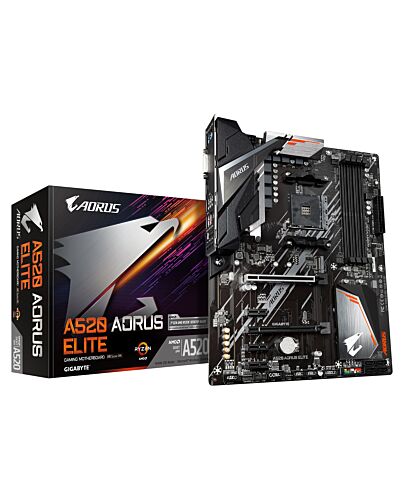

GIGABYTE A520 AORUS ELITE Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 5+3 Phases Pure Dig
£85.75
GIGABYTE A520 AORUS ELITE Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 5+3 Phases Pure Digital VRM, up to 4733MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen2, AMD, Socket AM4, AMD Ryzen 3000 Series, Socket AM4, DDR4-SDRAM, 128 GB
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompising quality and cutting-edge technology.
Key Features
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
- AMP-UP Audio with ALC1200 and High End Audio Capacitors
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- HDMI, DVI-D Ports for Multiple Display
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Pre-installed IO Shield for Easy and Quick Installation
Specifications
Processor
Processor manufacturer*
AMD
Processor socket*
Socket AM4
Compatible processor series*
AMD Ryzen 3000 Series
Supported processor sockets
Socket AM4
Memory
Supported memory types*
DDR4-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Supported memory clock speeds
2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz
Maximum internal memory*
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive interfaces*
M.2, SATA III
Number of storage drives supported
5
RAID levels
0, 1, 10
Graphics
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
1
Number of SATA III connectors*
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
Power fan connector
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
TPM connector
Yes
Serial port headers
1
RGB LED pin header
Yes
Rear panel I/O ports
USB 2.0 ports quantity*
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
1
Ethernet LAN (RJ-45) ports*
1
PS/2 ports quantity
1
HDMI ports quantity*
1
HDMI version
2.1
DVI-D ports quantity*
1
Headphone outputs
5
S/PDIF out port
Yes
Network
Ethernet LAN
Yes
Network
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset*
AMD A520
Audio chip
tek ALC1200
Audio output channels*
7.1 channels
PC health monitoring
Fan, Temperature, Voltage
Component for*
PC
Motherboard form factor*
ATX
Motherboard chipset family*
AMD
Windows operating systems supported
Windows 10 x64
Expansion slots
PCI Express x1 slots
3
PCI Express x16 slots
1
Number of M.2 (M) slots
1
BIOS
BIOS type*
UEFI AMI
BIOS memory size
128 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
Harmonized System (HS) code
84733020
Battery
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Packaging data
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Package weight
1.35 kg
Weight & dimensions
Width
305 mm
Depth
244 mm
Height
35 mm
Packaging content
Batteries included
Yes
Bundled software
Norton® Internet Security (OEM version), tek® 8118 Gaming LAN Bandwidth Control Utility
Technical details
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4719331809812 |
|---|---|
| MPN | A520 AORUS ELITE |
| BRAND | Gigabyte |
