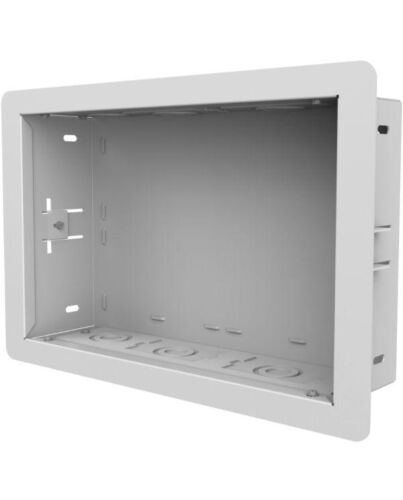

Peerless IB14X9-W TV mount accessory
£102.67
Peerless IB14X9-W, Cable management box, Wall, 11.3 kg, White, UL 2416, 400 mm
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Peerless-AV’s new In-Wall Boxes are designed to provide ultimate flexibility for any installation. The removable trim ring allows the installation to take place before or after drywall is installed. Flexible mounting options allow securement by two studs, a single stud or drywall only. Removable mounting plates reduce installation time by allowing an installer to complete wiring terminations outside the In-Wall Box.
Key Features
- Installs between 16" (406mm) stud centers, to a single stud or directly into a drywall opening
- Knock-outs for 3/4", 1.0", 1.25" and 1.5" conduit
- Cut-Out Dimensions: 14.4" x 9.4" (365 x 238mm)
- Adjustable Trim Ring allows use of 3/8" - 3/4" drywall thickness
- Knock-outs provide the ability to mount up to four single gang outlets. Compatible with RACO 420 gang box or equivalent
- Integrated cable tie locations
- UL 2416 listed
Specifications
Features
Product type*
Cable management box
Mounting type
Wall
Maximum weight capacity
11.3 kg
Product colour
White
Certification
UL 2416
Technical details
Compliance certificates
RoHS
Weight & dimensions
Width
400 mm
Depth
100 mm
Height
268 mm
Weight & dimensions
Weight
2.5 kg
Packaging data
Quantity per pack
1 pc(s)
Screws included
Yes
Package width
457 mm
Package depth
127 mm
Package height
330 mm
Package weight
2.9 kg
Logistics data
Harmonized System (HS) code
85299097
Additional Information
| EAN/UPC | 735029329558 |
|---|---|
| MPN | IB14X9-W |
