Product Details
Description

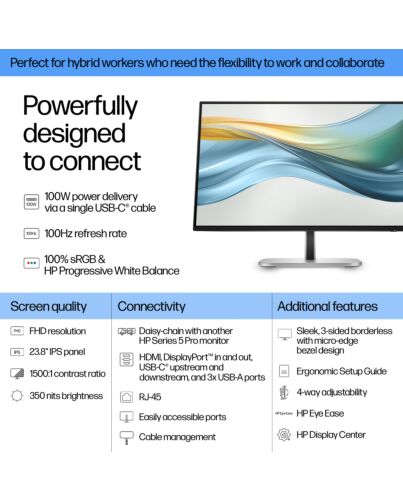

Powerfully designed to connect

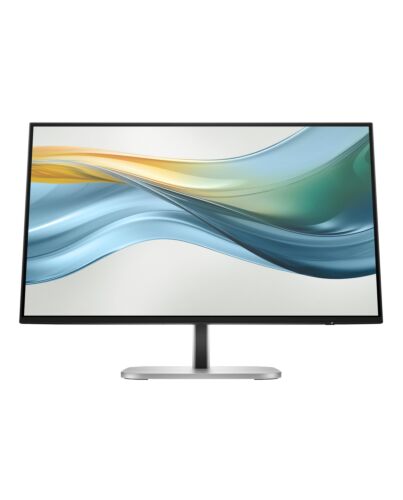

Plug into more possibilities with the HP Series 5 Pro 23.8” FHD USB-C Monitor. Its sleek, ern design gives you crisp, stunning visuals and enhanced 100W power delivery with a single cable connection that seamlessly connects to PCs and peripherals at home or in the office.
Plug into more possibilities with the HP Series 5 Pro 23.8” FHD USB-C Monitor. Its sleek, ern design gives you crisp, stunning visuals and enhanced 100W power delivery with a single cable connection that seamlessly connects to PCs and peripherals at home or in the office.
Key Features
- Experience elevated productivity on any device[3] with 100W power delivery. See more vibrant and consistent colors with 100% sRGB[1] and HP Progressive White Balance[2].
- Transform your space with a sleek, 3-sided borderless with micro-edge bezel design. Daisy-chain[4] another monitor[5] for a perfect dual display setup.
- Find all-day comfort with 4-way adjustability and the Ergonomic Setup Guide[6] for the optimal monitor position. HP Eye Ease reduces blue light without impacting color.
- Thoughtfully designed with at least 90% recycled plastic content[8], 20% recycled glass in the monitor panel[10], and 90% recycled aluminum in the stand[9].
Reasons To Buy
FHD Resolution
Focus on the finer details and enjoy sharp visuals and crystal clear images with the 1920 x 1080 FHD resolution on this 23.8" diagonal monitor.[1]IPS Technology
No matter where you are or sit, IPS technology ensures image accuracy and consistency across wide 178-degrees horizontal and vertical viewing angles.[1]100 Hz Refresh Rate
With a 100 Hz refresh rate this monitor is capable of clear details, smoothly moving f frame to frame, allowing for fast split-second reaction time.[1]More Contrast
See the nuanced differences of color, shadow, and highlights thanks to the enhanced 1500:1 contrast ratio.[1]High Brightness
350 nits of brightness lets you see clearly. Enhance your visual performance for work or simply enjoying entertainment.[1]100% sRGB Color Gamut
Enjoy highly accurate colors on screen with 100% sRGB. This HP monitor provides ideal color reproduction with minimal effort.[1]Progressive White Balance
Work better with content that looks the same on both screens. Progressive White Balance is an HP technology that provides consistent white-point matching f screen-to-screen.[2]USB-C® Connectivity
Keep your set up simple and seamless with a display that has everything built in. Connect a keyboard and mouse to the ports on the back of this monitor and only one USB-C® cable to your notebook for data, video, and up to 100W of charging.Daisy-Chain a Second HP Series 5 Pro Monitor
Display even more with DisplayPort™ by daisy- chaining a second HP Series 5 Pro monitor for the perfect dual-display setup.[4,5]More Ports. More Power. Easily Accessible.
Packed with ports including full-function USB-C®, HDMI 2.0, DisplayPort™ 1.4, USB-C® downstream, plus 3 USB-A 3.2 ports.[12]Sleek Design, Clean Space
See and do more on your screen with a 3-sided borderless with micro-edge bezel design that maximizes your viewing area for a sleek design and virtually seamless dual-monitor setups.Endless Adjustability
With 4-way adjustability you can customize pivot, tilt, height adjust, and swivel settings to fit you, your desk, and your needs.Always-on, True Color, Low-Blue Light Filter
HP Eye Ease is an always-on, low-blue light filter that helps keep your eyes comfortable throughout the day by reducing blue light without impacting color accuracy or adding a yellow color shift.Ergonomic Setup Guide
With world-class ergonomic practices at your fingertips, you have the knowledge to fine-tune your display's 4-way adjustability to achieve optimal comfort, all day, thanks to the step-by-step Ergonomic Setup Guide in HP Display Center.[6,7]HP Display Center
Customize your monitor with the intuitive HP Display Center that lets you tailor your settings, partition screens, and more—all through the host PC. Plus, learn how to find your perfect posture with help f the included HP Ergonomic Setup Guide.[6,7]Remote Management Reimagined
HP Client Management Script Liby (CMSL) makes remote manageability easy to use. This powerful solution works seamlessly with Intune/SCCM to manage your display fleet using PowerShell.[13]Single Power On
Instantly turn on your display and PC, even when the lid is closed, by pressing the power button on the bottom of the display.[14]Increased Energy Efficiency
HP is committed to helping protect our shared future by minimizing the energy our monitors consume to help reduce energy demand. This monitor is held to the highest energy saving standard with an ENERGY STAR® rating and EPEAT® Gold Registration.[15]Your center of productivity
Designed to work beautifully together
Take control of your comfort
Specifications
Display
Display diagonal*
60.5 cm (23.8")
Display resolution*
1920 x 1080 pixels
HD type*
Full HD
Native aspect ratio*
16:9
Display technology*
LCD
Panel type*
IPS
LED backlight
Yes
Backlight type
Edge LED
Touchscreen*
No
Display brightness (typical)
350 cd/m²
Display brightness
350 cd/m²
Response time*
5 ms
Response time measurement type
GTG (Gray to Gray)
Display surface
Matt
Anti-glare screen
Yes
Screen shape*
Flat
Supported graphics resolutions
1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA)
Aspect ratio
16:9
Contrast ratio (typical)*
1500:1
Contrast ratio (dynamic)
10000000:1
Maximum refresh rate*
100 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours*
16.7 million colours
Pixel pitch
0.28 x 0.28 mm
Pixel density
93 ppi
Horizontal scan range
30 - 115 kHz
Vertical scan range
50 - 100 Hz
Viewable size, horizontal
52.7 cm
Viewable size, vertical
29.6 cm
Display diagonal (metric)
60.5 cm
Haze rate
25%
Surface hardness
3H
Colour depth
8 bit
Colour gamut standard
sRGB
Colour gamut
100%
sRGB coverage (typical)
100%
Display bezel technology
Micro-Edge
Performance
NVIDIA G-SYNC*
No
AMD FreeSync*
No
Fast charging
Yes
Flicker-free technology
Yes
Low Blue Light technology
Yes
HP segment
Business
Multimedia
Built-in speaker(s)*
No
Built-in camera*
No
Design
Market positioning*
Business
Product colour*
Black, Silver
Colour name
Jet black
Detachable stand
Yes
Feet colour
Silver, Black
Ports & interfaces
Built-in USB hub*
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB Type-A downstream ports quantity
3
USB Type-C downstream ports quantity
1
USB Type-C DisplayPort Alternate e
Yes
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
100 W
HDMI*
Yes
HDMI ports quantity
1
HDMI version
2.0
DisplayPorts quantity
1
DisplayPort version
1.4
Headphone out*
No
HDCP
Yes
Network
Ethernet LAN
Yes
Network
Remotely operated
Yes
Ergonomics
VESA mounting*
Yes
Panel mounting interface
100 x 100 mm
Cable lock slot*
Yes
Height adjustment*
Yes
Adjustable height (max)
15 cm
Pivot
Yes
Swivelling
Yes
Swivel angle range
-45 - 45°
Tilt adjustment
Yes
Tilt angle range
-5 - 23°
On Screen Display (OSD)
Yes
Power
Energy efficiency class (SDR)*
D
Energy efficiency class (HDR)*
D
Energy consumption (SDR) per 1000 hours*
14 kWh
Power consumption (typical)*
22 W
Power consumption (standby)*
0.5 W
Power consumption (max)
198 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Energy efficiency scale
A to G
Operational conditions
Operating temperature (T-T)
5 - 35 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
20 - 80%
Weight & dimensions
Width (with stand)
539.4 mm
Depth (with stand)
189.5 mm
Height (with stand)
503.2 mm
Weight (with stand)
5.93 kg
Width (without stand)
539.4 mm
Depth (without stand)
47.2 mm
Height (without stand)
314.3 mm
Packaging data
Package width
621 mm
Package depth
140 mm
Package height
393 mm
Package weight
8.42 kg
Package type
Box
Warranty card
Yes
Packaging content
Cables included
USB Type-C to USB Type-C
Quick start guide
Yes
Bundled software
HP Display Center; HP Client Management Script Liby
Sustainability
Sustainability certificates
ENERGY STAR, EPEAT, TCO
Carbon footprint
Total carbon footprint (kg of CO2e)
190
Carbon emissions, manufacturing (kg of CO2e)
153
Carbon emissions, logistics (kg of CO2e)
3
Carbon emissions, end-of-life (kg of CO2e)
2
Total carbon emissions, w/o use phase (kg of CO2e)
34
Other features
Country of origin
China
UNSPSC-code
43211902
Weight
5.93 kg
Compliance certificates
CECP, CCC, CB, EAC, BIS, Federal Communications Commission (FCC), CE, BSMI
Manufacturer warranty
HP three-year limited warranty
Ethernet LAN (RJ-45) ports
1
Certification
Australian-New Zealand MEPS; BIS; BSMI; CB; CCC; CE; CECP; CEL Grade 1; cTUVus; EAC; FCC; ICES; 9241-307; KC; KCC; NOM; PSB; RCM; SEPA; TUV-S; VCCI; Vietnam MEPS; WEEE; ISC; California Energy Commission (CEC); UAE; TGM; Ukraine certificates; TÜV Flicker free ; NRCS; PSE; GS; Ukraine EE; TÜV Low Blue Light Hardware Solution ; Korea MEPS; Australian-New Zealand DoC; EMF
Brand-specific features
HP GTIN (EAN/UPC)
197961408201
Technical details
Box contents
Monitor; Warranty card; AC power cable; Quick Setup Poster; 1 USB Type-C to Type-C cable
General Product Safety Regulation (GPSR) URL
Additional Information
| EAN/UPC | 197961408201 |
|---|---|
| MPN | 9D9V7AA#ABU |
| BRAND | HP |
Disclaimer
[1] All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary, either higher or lower.
[2] HP's Progressive White Balance feature is designed to calibrate 100% full white on HP Series 5 Pro monitors. This adjustment is intended to align the white point more closely among various HP Series 5 Pro monitors. However, due to the nature of monitors, perceptible differences in the white color may still occur when the monitors are viewed f varying angles.
[3] Works across any OS. Keeps the same power delivery when connecting multiple devices.
[4] 100 Hz refresh rate supported on host PCs with DisplayPort™ 1.2 or higher. Host PC may affect the refresh rate combinations of monitors 1 and 2. Refresh rates can be user enabled in PC settings.
[5] HP Series 5 Pro monitor or additional monitor sold separately.
[6] Ergonomic Setup Guide is available through HP Display Center. Host PC requires Windows 10 or higher. HP Display Center is available on the Microsoft store.
[7] Host PC requires Windows 10 or higher. HP Display Center is available for download on the Microsoft store for Windows or support.hp.com for Windows and MacOS.
[8] Recycled plastic is expressed as a percentage of the total weight plastic. Post-consumer recycled is based on the definition set in the EPEAT standard for computers, IEEE 1680.1-2018 standard.
[9] Recycled metal is expressed as a percentage of the total weight of the metal according to 14021 definitions for metal parts over 25 grams.
[10] Percentage of recycled glass in the monitor panel varies by product. Recycled glass is expressed as a percentage of the total weight of the glass.
[12] AC Power cable and USB-C 3.2 Gen 1 cable included. All other cables sold separately.
[13] HP CMSL is estimated to be available between November 2024 to April 2025. HP CMSL is only supported on 64-bit PowerShell 5.1 and higher. CMSL Support Windows 10 version 1809 and higher, and Windows 11. Some limitations may apply to legacy displays. Visit support.hp.com to download HP CMSL.
[14] Single Power On only compatible with HP PCs with Windows 10 or higher.
[15] Based on US EPEAT registration according to IEEE 1680.1-2018 EPEAT. Status varies by country. Visit www.epeat.net for more information. EPEAT is a world class ecolabel for electronics and technology products. EPEAT Gold with Climate+ registered products have met rigorous criteria and been independently verified to assure they have been thoughtfully designed with the planet in mind. With EPEAT Climate+, you're not just choosing products; you're choosing a movement towards corporate responsibility and climate action. This product has been verified to meet ENERGY STAR requirements.
Technical specification disclaimers:
All specifications represent the typical specifications provided by HP's component manufacturers, actual performance may vary either higher or lower.
DisplayPort™ 1.4 or HDMI 2.0 required to drive panel at its native resolution. The video card of the connected PC must be capable of supporting 1920 x 1080 at 60 Hz with 8-bit color using one DisplayPort™, HDMI. The video card of the connected PC must be capable of supporting 1920 x 1080 and include one DisplayPort™ or one HDMI outputs to drive the monitor at the Preferred e.
Number of colors through A-FRC technology.
Included cables may vary by country.
Lock sold separately.
Host PC requires Windows 10 and above. HP Display Center is available on the Microsoft store.
EPEAT registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status by country. Based on US EPEAT registration according to IEEE 1680.1-2018 EPEAT. Status varies by country. Visit www.epeat.net for more information.
Percentage of recycled glass in the monitor panel varies by product. Recycled glass is expressed as a percentage of the total weight of the glass.
Ocean Bound plastic is expressed as a percentage of the total weight plastic. Ocean Bound plastic is based on the definition set by the UL2809 standard.
External power supplies, WWAN ules, power cords, cables and peripherals excluded. Service parts obtained after purchase may not be Low Halogen.
100% outer box packaging and corrugated cushions made f sustainably sourced and recycled fibers.
Recycled metal is expressed as a percentage of the total weight of the metal according to 14021 definitions for metal parts over 25 grams.
The Client Management Script Liby must be downloaded to the connected PC to run CMSL commands. Some limitations may apply to legacy displays. Visit support.hp.com to download HP CMSL.
Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows is automatically updated and enabled. High speed internet and Microsoft account required. ISP fees may apply and additional requirements may apply over time for updates. See
A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with 14040 & 14044. Individual values may not sum to total due to rounding.
