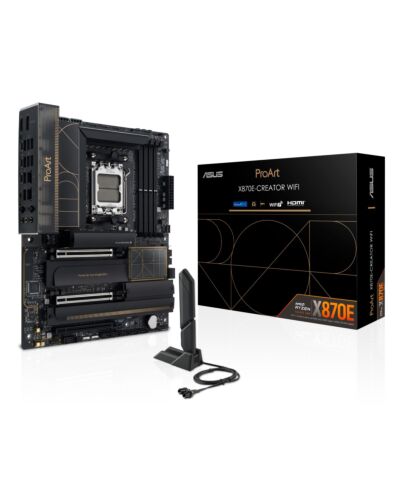

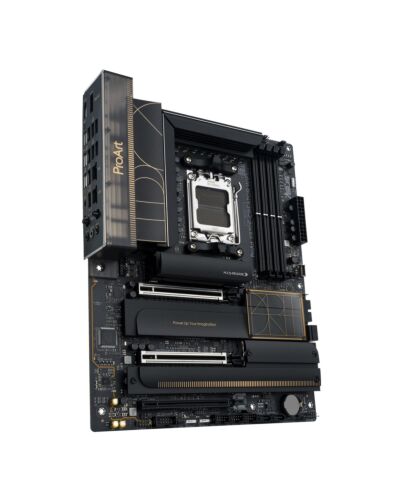

ASUS ProArt X870E-CREATOR WIFI AMD X870E Socket AM5 ATX

£480.34
ASUS ProArt X870E-CREATOR WIFI, AMD, Socket AM5, Socket AM5, DDR5-SDRAM, 192 GB, DIMM
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7.​

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.​

All You Need for Maximum Productivity
Dual USB4® Connectivity
Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the USB4 port.​

Specifications

Processor

Processor manufacturer*
AMD
Processor socket*
Socket AM5
Supported processor sockets
Socket AM5

Memory

Supported memory types*
DDR5-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Maximum internal memory*
192 GB
Unbuffered memory
Yes

Storage controllers

Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
8
RAID support
Yes
RAID levels
0, 1, 10, 5

Graphics

Parallel processing technology support*
Not supported

Internal I/O

USB 2.0 connectors*
3
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
1
USB 3.2 Gen 2x2 connectors
1
Number of SATA III connectors*
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
5
Chassis intrusion connector
Yes
Number of COM connectors
1
12V power connector
Yes

Rear panel I/O ports

USB 2.0 ports quantity*
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
7
USB 3.2 Gen 2x2 Type-C ports quantity
1

Rear panel I/O ports

USB4 Gen 2x2 ports quantity
2
Ethernet LAN (RJ-45) ports*
2
HDMI ports quantity*
1
DisplayPorts quantity
1
Microphone in
Yes
WiFi-AP antenna jack
1

Network

Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth
Yes
Bluetooth version
5.4

Features

Motherboard chipset*
AMD X870E
Audio chip
tek S1220A
Audio output channels*
7.1 channels
Component for*
PC
Motherboard form factor*
ATX
Motherboard chipset family*
AMD
Windows operating systems supported
Windows 11

Expansion slots

PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
2
Number of M.2 (M) slots
4

BIOS

BIOS type*
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS button
Yes

Weight & dimensions

Width
305 mm
Depth
244 mm

Packaging content

Cables included
DisplayPort, SATA

Additional Information

More Information
EAN/UPC 4711387730775
MPN PROART X870E-CREATOR WIFI
BRAND ASUS
