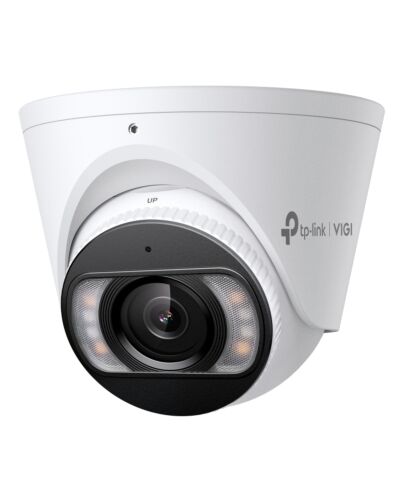

TP-Link INSIGHT S445 Turret IP security camera Outdoor 2688 x 1520 pixels Ceiling
£148.49
TP-Link INSIGHT S445, IP security camera, Outdoor, Wired, 64 m, 120 dB, Ceiling
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Human & Vehicle Classification
Distinguish humans and vehicles f other objects and receive more accurate event notifications.
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△
Smart IR: Smart IR dynamically adjusts infed lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Human & Vehicle Classification
Distinguish humans and vehicles f other objects and receive more accurate event notifications.
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△
Smart IR: Smart IR dynamically adjusts infed lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
Key Features
- 4MP Super-High Definition and 24h Full-Color
- People & Vehicle Analytics§
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- IP67 Waterproof
- H.265+ Compression Technology
Specifications
Performance
Type*
IP security camera
Placement supported*
Outdoor
Connectivity technology*
Wired
Maximum operating distance
64 m
Wide Dynamic Range (WDR)
Yes
Day/night e
Yes
Infed (IR) cut-off filter
Yes
Remote viewing
Yes
Dynamic range
120 dB
Design
Form factor*
Turret
Mounting type*
Ceiling
Product colour*
White
Housing material
Metal
Protection features
Waterproof
International Protection (IP) code
IP67
Weatherproof
Yes
Camera
Minimum illumination
0 lx
Lens viewing angle, horizontal
100°
Lens viewing angle, vertical
54°
Lens viewing angle, diagonal
118°
Tilt angle range
0 - 90°
Camera shutter speed
1/3 to 1/10000
Image sensor
Optical sensor size
25.4 / 2.7 mm (1 / 2.7")
Progressive scan
Yes
Sensor type*
CMOS
Lens system
Detect distance
64 m
Observe distance
27 m
Recognize distance
13 m
Fixed focus
Yes
Maximum aperture number
1.6
Identify distance
6 m
Fixed focal length
2.8 mm
Night vision
Night vision*
Yes
LED type
IR/White
Video
Maximum resolution*
2688 x 1520 pixels
Total megapixels*
4 MP
Video compression formats
H.264, H.264+, H.265, H.265+
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Video recording
Yes
Image quality adjustment
Brightness, Contrast, Mirror, Saturation, Sharpness
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate
Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps
Back Light Compensation (BLC)
Yes
Highlight Compensation (HLC)
Yes
Digital Wide Dynamic Range (DWDR)
Yes
Audio
Built-in speaker(s)
Yes
Audio system
2-way
Audio input channels
1.0 channels
Audio output channels
1.0 channels
Audio formats supported
G.711 A-law
Audio
Sample rate
8 kHz
Built-in microphone
Yes
Number of microphones
1
Bit rate range
0 - 64 Kbit/s
Network
Ethernet LAN*
Yes
Networking standards
IEEE 802.3af, IEEE 802.3at
Supported network protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Wi-Fi*
No
Bluetooth*
No
Live view
Yes
Storage
Compatible memory cards
MicroSD (TransFlash)
Maximum memory card size
512 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Security
Built-in siren
Yes
Password protection
Yes
Video motion detection
Yes
IP address filtering
Yes
HTTPS encryption
Yes
Alert notification type
Push notification
Motion sensor
Yes
Mirror
Yes
Human and vehicle targets classification
Yes
Digest ation
Yes
Management features
Web-based management
Yes
Web browser
Yes
Cloud-managed*
Yes
Reset button
Yes
Power
Power source type*
DC, PoE
Power consumption (max)
11 W
Power consumption (Power over Ethernet (PoE))
12 W
DC output voltage
12
Operational conditions
Operating temperature (T-T)
-30 - 60 °C
Storage temperature (T-T)
-40 - 60 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Weight & dimensions
Width
111 mm
Height
83.7 mm
Length
111 mm
Weight
480 g
Packaging data
Package type
Box
Packaging content
Number of cameras*
1
Mounting kit
Yes
Screws included
Yes
Drilling template included
Yes
Manual
Yes
Additional Information
| EAN/UPC | 1210002606325 |
|---|---|
| MPN | INSIGHT S445(2.8MM) |
| BRAND | TP-LINK |
