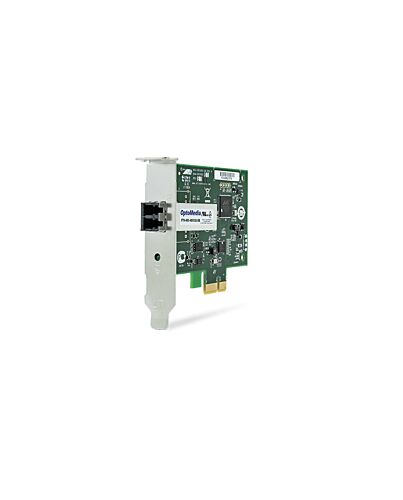

Allied Telesis 2914SX/LC Internal Fiber 1000 Mbit/s
£205.76
Allied Telesis 2914SX/LC, Internal, Wired, PCI Express, Fiber, 1000 Mbit/s
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
PCI Express Gigabit Network Adapters with Wake-on-LAN (WoL) Support
The Allied Telesis 2914SX/LC is a gigabit PCIe x1 network adapter with a fixed LC connector. It supports Wake-on-LAN without the use of an external power supply.
The Allied Telesis 2914SX/LC is a gigabit PCIe x1 network adapter with a fixed LC connector. It supports Wake-on-LAN without the use of an external power supply.
Key Features
- Jumbo frames up to 9.6KB
- Smart Load Balancing (SLB) and failover
- Link aggregation (IEEE 802.3ad)
- Generic trunking (FEC/GEC) / IEEE 802.3ad-draft static
- UEFI network boot
- Low-profile and standard height brackets included
Specifications
Ports & interfaces
Connectivity technology*
Wired
Host interface*
PCI Express
Interface*
Fiber
Fiber ports quantity
2
Fiber optic connector
LC
Network
Maximum data transfer rate*
1000 Mbit/s
Networking standards*
IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z
Security algorithms
SNMP
Wake-on-LAN ready
Yes
Jumbo frames support
Yes
Auto-negotiation
Yes
Jumbo frames
9600
Quality of Service (QoS) support
Yes
Load balancing system
Yes
Design
Internal*
Yes
LED indicators
Yes
Certification
UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI
Power
Power consumption (typical)
1.5 W
System requirements
Windows operating systems supported
Windows 10, Windows 7
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2016, Windows Server 2019
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
88 mm
Height
69 mm
Weight
68 g
Technical details
Compliance certificates
RoHS
Logistics data
Harmonized System (HS) code
85176990
Other features
Flow control support
Yes
Additional Information
| EAN/UPC | 767035210636 |
|---|---|
| MPN | AT-2914SX/LC-901 |
| BRAND | ALLIED TELESIS |
