Biamp Tesira EX-OUT
£1,877.04
Biamp Tesira EX-OUT, 4 channels, -125 dBu, 0 - 66 dB, 200 Ω, 100 dB/s, Black
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

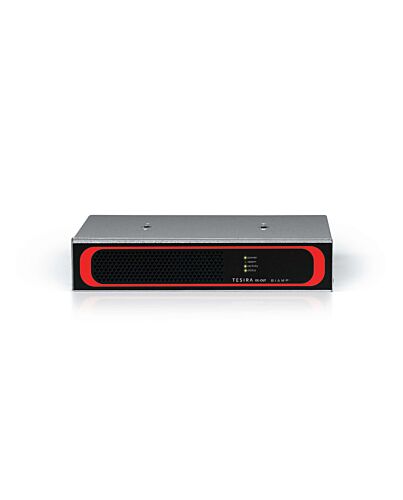

Tesira EX-OUT
The Tesira EX-OUT is a half-rack expander box for use with AVB-enabled Tesira server-class devices. The EX-OUT is a 4-channel mic or line level audio output expander. The expander communicates with the Tesira AVB network for audio networking, configuration, and control, and is powered by PoE+.
The Tesira EX-OUT complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
The Tesira EX-OUT is a half-rack expander box for use with AVB-enabled Tesira server-class devices. The EX-OUT is a 4-channel mic or line level audio output expander. The expander communicates with the Tesira AVB network for audio networking, configuration, and control, and is powered by PoE+.
The Tesira EX-OUT complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Key Features
- Four channels of balanced mic or line level output
- 100 to +12dB fader range for level
- Signal invert for reverse polarity
- Selectable full-scale output reference level (24dBu, 18dBu, 12dBu, 6dBu, 0dBu, -31dBu) for best interface/performance
- Audio and control networking over AVB/TSN
- Front panel LEDs for device status indications
- Powered by PoE+
- Plug-in barrier strip connectors
- Half-rack chassis
- RoHS compliant and AES grounded
- Compliant with the US Trade Agreement Act (TAA)
Specifications
Features
Audio channels*
4
Audio input channels*
4 channels
Equivalent Input Noise (EIN)
-125 dBu
Input gain range
0 - 66 dB
Output impedance (balanced)
200 Ω
Convergence
100 dB/s
Product colour
Black
LED indicators
Yes
Ports & interfaces
Power over Ethernet (PoE) ports quantity
1
Mic/Line output ports quantity
4
USB port*
No
Power
Power over Ethernet (PoE)*
Yes
Power consumption (typical)
30 W
Weight & dimensions
Width
216 mm
Weight & dimensions
Depth
197 mm
Height
44 mm
Weight
1.4 kg
Packaging data
Package width
279.4 mm
Package depth
381 mm
Package height
101.6 mm
Package weight
1.4 kg
Sustainability
Sustainability compliance
Yes
Logistics data
Country of origin
United States
Export Control Classification Number (ECCN)
EAR99
Technical details
Compliance certificates
RoHS, Federal Communications Commission (FCC), EAC, CE
Additional Information
| EAN/UPC | 814367020911. |
|---|---|
| MPN | 911.0309.900 |
