Components

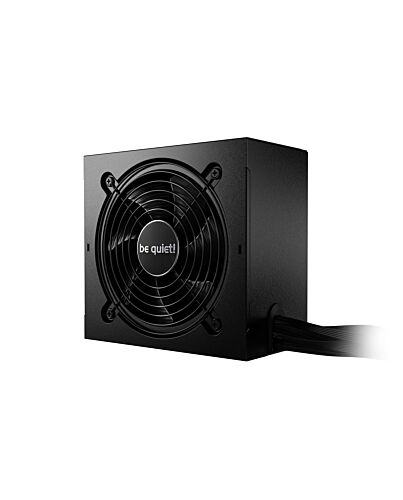

be quiet! System Power 10 power supply unit 850 W 20+4 pin ATX ATX Black
£85.80
be quiet! System Power 10, 850 W, 200 - 240 V, 50 Hz, 5 A, Active, 120 W
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
PROVEN RELIABILITY, QUIET OPERATION
System Power 10 850W has been built with price-conscious users in mind that do not want to dispense on reliability and quietness. Features such as LLC + SR + DC-to-DC topology and Dual-Rail operation underline the value System Power 10 850W offers even at entry-level.
80 PLUS® GOLD CERTIFICATION
Very high operating efficiency
System Power 10 850W is 80 PLUS Gold with an efficiency rating of up to 93.4% – a truly outstanding level for this class of PSUs. The most compelling benefit is lower power consumption, lower costs, and cooler, quieter operation. Whether you are building a very quiet system or gaming system: System Power 10 850W is the price-conscious choice!
EXCEPTIONALLY SILENT OPERATION
Achieved by a silence-optimized 120mm be quiet! fan
The silence-optimized 120mm be quiet! fan is thermally governed to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality and the almost inaudible operation that be quiet! is famous for.
HIGH-CLASS TECHNOLOGIES
Compatibility for all systems
LLC and Synchronous Rectifier (SR) provide very stable operation and enhanced voltage regulation. The PSU is equipped with DC-to-DC conversion for tight voltage regulation even under heavy cross-loading conditions.
HIGH PERFORMANCE FOR YOUR SYSTEM
Proven reliability for CPU and GPU
System Power 10 850W provides stable and dependable power for CPU and GPU. It is equipped with 2 independent 12V-rails and supports several graphics cards with 4 PCI express connectors for GPU support.
System Power 10 850W has been built with price-conscious users in mind that do not want to dispense on reliability and quietness. Features such as LLC + SR + DC-to-DC topology and Dual-Rail operation underline the value System Power 10 850W offers even at entry-level.
80 PLUS® GOLD CERTIFICATION
Very high operating efficiency
System Power 10 850W is 80 PLUS Gold with an efficiency rating of up to 93.4% – a truly outstanding level for this class of PSUs. The most compelling benefit is lower power consumption, lower costs, and cooler, quieter operation. Whether you are building a very quiet system or gaming system: System Power 10 850W is the price-conscious choice!
EXCEPTIONALLY SILENT OPERATION
Achieved by a silence-optimized 120mm be quiet! fan
The silence-optimized 120mm be quiet! fan is thermally governed to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality and the almost inaudible operation that be quiet! is famous for.
HIGH-CLASS TECHNOLOGIES
Compatibility for all systems
LLC and Synchronous Rectifier (SR) provide very stable operation and enhanced voltage regulation. The PSU is equipped with DC-to-DC conversion for tight voltage regulation even under heavy cross-loading conditions.
HIGH PERFORMANCE FOR YOUR SYSTEM
Proven reliability for CPU and GPU
System Power 10 850W provides stable and dependable power for CPU and GPU. It is equipped with 2 independent 12V-rails and supports several graphics cards with 4 PCI express connectors for GPU support.
Key Features
- 80 PLUS® Gold efficiency (up to 93.4%)
- Advanced stability and voltage regulation thanks to LLC, SR and DC-to-DC
- Silence-optimized 120mm be quiet! fan reduces system noise
- Rock-solid stability with 2 strong 12V-rails
- Dependable operation to support powerful GPUs
- Stand-by drain of less than 0.15 watts
- Attractive black flat cables
- Complete suite of top safety features
Specifications
Power
Total power*
850 W
AC input voltage*
200 - 240 V
AC input frequency
50 Hz
Input current
5 A
Power factor
0.97
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
120 W
Combined power (+12V)
849.6 W
Combined power (+5V)
120 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
22 A
Max output current (+12V1)
40 A
Max output current (+12V2)
36 A
Max output current (+5V)
22 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Hold time
17 ms
Efficiency
93.4%
Power Good signal delay range
100 - 150 ms
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
55 cm
Number of SATA power connectors
6
Number of PATA power connectors
1
SATA power cable length
450,550,570,670,690,790 mm
Peripheral (Molex) power connectors (4-pin)*
1
Peripheral (Molex) power cable length
790 mm
EPS power connector (8-pin)
Yes
PCI Express power connectors (6+2 pin)
4
PCI Express power cable length
65 cm
CPU power connector (4+4 pin)
Yes
CPU power cable length
60 cm
ATX power connector (20+4 pin)
Yes
PCI Express connector
Yes
Cabling type
Non-ular
Performance
80 PLUS certification*
80 PLUS Gold
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
ATX version
2.52
Performance
EPS version
2.92
Noise level
30.7 dB
Bearing technology
Rifle
Mean time between failures (MTBF)
100000 h
Design
Product colour
Black
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan speed
0 - 2000 RPM
On/off switch
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Certificates
Compliance certificates
CCC, CE, Federal Communications Commission (FCC), RoHS, WEEE
Certification
CB, TÜV, cRUus, cTUVus, RCM (Australia), BSMI, CU (Russia)
Weight & dimensions
Width
160 mm
Depth
86 mm
Height
150 mm
Weight
2.14 kg
Packaging data
Manual
Yes
Manual languages
German, English, Spanish, French, Polish, Russian
Package width
220 mm
Package depth
300 mm
Package height
100 mm
Package weight
2.6 kg
Technical details
Sustainability certificates
ENERGY STAR, ErP
Logistics data
Warranty period
5 year(s)
Country of origin
Germany
Other features
Screws included
Yes
Noise level (silent e, <30%)
10.3 dB
Noise level (quiet e, 50%)
10.4 dB
Noise level (full-load e, 100%)
30.7 dB
Additional Information
| EAN/UPC | 4260052189108 |
|---|---|
| MPN | BN330 |
| BRAND | BEQUIET |
