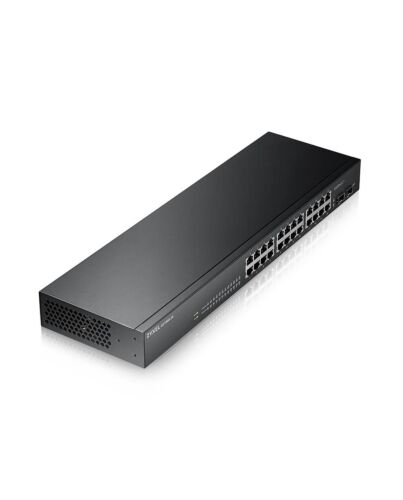

Zyxel GS-1900-24 v2 Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
£128.82
Zyxel GS-1900-24 v2, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Near silent operation
The GS1900 Series includes both fan-less and built-in smart fan els. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating. It is ideal for your office environment.
Intelligent PoE+ powers more devices
PoE els (8HP/10HP/24EP/24HPv2/48HPv2) come with default PoE consumption e which delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. All of them support the IEEE 802.3at providing a maximum of 30W per port.
Speedy Gigabit performance—built for SMBs
The GS1900 is a series of switches with full non-blocking bandwidth of up to 1 Gbps per port. An ideal upgrade f an unmanaged switch, it’s a great choice for SMBs that want to enjoy high-speed business network applications at full wired non-blocking speed.
Easy and intuitive management
The Smart Managed GS1900 Series switch feature with web-based interface to manage advanced functions such as VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), IPv6 and DoS prevention easily. Also, the user-friendly wizard helps to walk through setup, configuration and even advanced settings quickly.
The GS1900 Series includes both fan-less and built-in smart fan els. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating. It is ideal for your office environment.
Intelligent PoE+ powers more devices
PoE els (8HP/10HP/24EP/24HPv2/48HPv2) come with default PoE consumption e which delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. All of them support the IEEE 802.3at providing a maximum of 30W per port.
Speedy Gigabit performance—built for SMBs
The GS1900 is a series of switches with full non-blocking bandwidth of up to 1 Gbps per port. An ideal upgrade f an unmanaged switch, it’s a great choice for SMBs that want to enjoy high-speed business network applications at full wired non-blocking speed.
Easy and intuitive management
The Smart Managed GS1900 Series switch feature with web-based interface to manage advanced functions such as VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), IPv6 and DoS prevention easily. Also, the user-friendly wizard helps to walk through setup, configuration and even advanced settings quickly.
Key Features
- Start up button
- VLAN
- QoS
- Link aggregation
Specifications
Management features
Switch type*
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
System event log
Yes
MIB support
RFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9), RFC 1215, RFC 1493
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
24
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
SFP ule slots quantity
2
Power connector
AC-in jack
Network
Networking standards*
IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support*
No
Port mirroring
Yes
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Spanning tree protocol
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
MAC address auto-learning supported
Yes
VLAN support
Yes
Virtual LAN features
Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN
Data transmission
Switching capacity*
52 Gbit/s
Forwarding rate
39 Mpps
MAC address table*
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
0.525 MB
Security
DHCP features
DHCP client
IGMP snooping
Yes
Security algorithms
802.1x RADIUS
MAC address filtering
Yes
Static port security
Yes
SSH/SSL support
Yes
Password protection
Yes
ation type
RADIUS, TACACS+
Design
Rack mounting*
Yes
Stackable*
Yes
Form factor
1U
Product colour
Black
Reset button
Yes
LED indicators
Yes
Performance
Mean time between failures (MTBF)
432.673 h
Power
Power source*
AC
Power supply included*
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
16 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
No
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 95%
Storage relative humidity (H-H)
10 - 95%
Heat dissipation
55 BTU/h
Weight & dimensions
Width
440 mm
Depth
131 mm
Height
44 mm
Weight
2.09 kg
Packaging content
Cables included
AC
Rack mount kit
Yes
Packaging data
Package type
Box
Package width
561 mm
Package depth
217 mm
Package height
82 mm
Package weight
2.85 kg
Certificates
Certification
EMC
■ CE, FCC, C-Tick, Class A
(GS1900-24/24EP/24HPv2/48/
48HPv2)
■ CE, FCC, C-Tick, Class B
(GS1900-8/8HP/10HP/16/24E)
■ BSMI CNS13438
• Safety
■ LVD EN60950-1
■ BSMI CNS14336-1
■ CB IEC60950-1
(GS1900-8HP/10HP/16/24E/24)
• RoHS compliant
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 4718937621248 |
|---|---|
| MPN | GS1900-24-GB0102F |
| BRAND | Zyxel |
