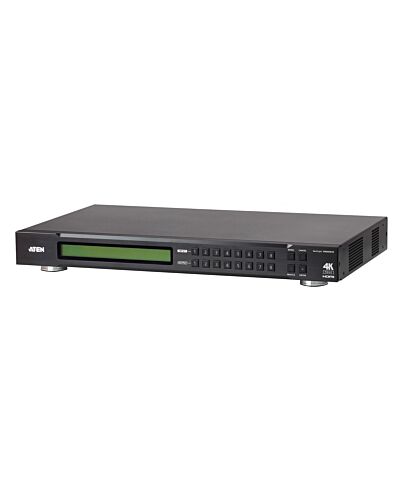

ATEN 8X8 True 4K HDMI Martrix Switch
£1,606.69
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
ATEN's VM0808HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0808HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more.
1x VM0808HB 8 x 8 True 4K HDMI Matrix Switch
1x LIN2-418K-E12G Power Cord
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x Rack Mounting Kit
1x User Instructions
1x VM0808HB 8 x 8 True 4K HDMI Matrix Switch
1x LIN2-418K-E12G Power Cord
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x Rack Mounting Kit
1x User Instructions
Key Features
- Connects any of 8 HDMI sources to any of 8 HDMI displays
- Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
- Supports HDR10+
- Multiple Control Methods – system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections
- View and control via ATEN Video Matrix Control App in a swift and agile way
- EDID Expert – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
- Signaling rates up to 6 Gbits for flawless true 4K output
- Supports Dolby True HD and DTS HD Master audio
- HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
- Supports Consumer Electronics Control (CEC)
- Power-on Detection – switches to the next powered-on source when one source is powered off
- ESD protection for HDMI
- Supports ATEN’s LockPro HDMI cable lock for secure HDMI cable connections
- Firmware upgradeable
- Rack mountable (1U design)
Specifications
Features
Product type*
AV matrix switcher
Data transfer rate
18 Gbit/s
Maximum pixel clock
600 MHz
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
HDCP version
2.2
3D
Yes
High Dynamic Range (HDR) supported
Yes
Extended display identification data (EDID)
Yes
Supported resolutions
4096 x 2160, 3840 x 2160, 1920 x 1200
Design
Housing colour
Black
Housing material
Metal
Rack mounting
Yes
Rack capacity
1U
Control type
Buttons
On/off switch
Yes
LED indicators
Yes
Remote control included
Yes
Display
Built-in display*
Yes
Ports & interfaces
HDMI input ports quantity
8
HDMI output ports quantity
8
Ethernet LAN (RJ-45) ports
1
RS-232 ports
1
Remote (IR) input
1
Power
Power consumption (max)*
38.1 W
Power consumption (typical)
37.8 W
AC input voltage
100-240 V
AC input frequency
50-60 Hz
Power
Input current
1 A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Heat dissipation
177 BTU/h
Heat dissipation (max)
179 BTU/h
Logistics data
Products per master (outer) case
1 pc(s)
Master (outer) case gross weight
5.63 kg
Master (outer) case length
515 mm
Master (outer) case width
338 mm
Master (outer) case height
155 mm
Master (outer) case net weight
4.15 kg
Harmonized System (HS) code
85299097
Weight & dimensions
Width
432.4 mm
Depth
262.3 mm
Height
44 mm
Weight
4.15 kg
Package width
338 mm
Package depth
515 mm
Package height
155 mm
Package weight
5.63 kg
Packaging content
Cables included
AC
Rack mount kit
Yes
Quick start guide
Yes
IR receiver included
Yes
Additional Information
| EAN/UPC | 4719264646836 |
|---|---|
| MPN | VM0808HB-AT-E |
