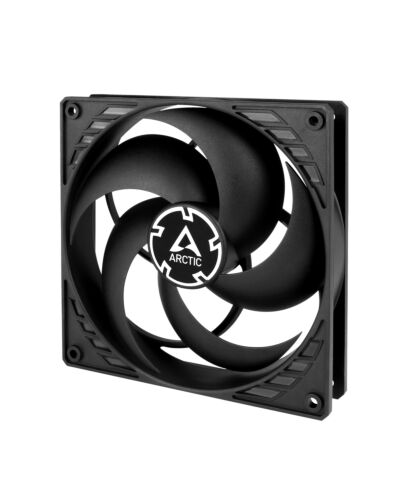

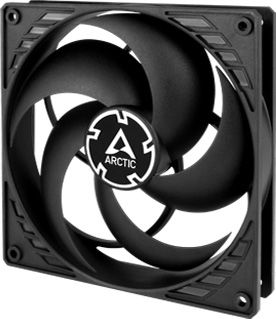

ARCTIC P14 PWM PST CO Pressure-optimised 140 mm Fan with PWM PST for Continuous Operation
£7.07
ARCTIC P14 PWM PST CO Pressure-optimised 140 mm Fan with PWM PST for Continuous Operation, Fan, 14 cm, 200 RPM, 1700 RPM, 0.3 sone, 123.76 m³/h
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.
Reasons To Buy

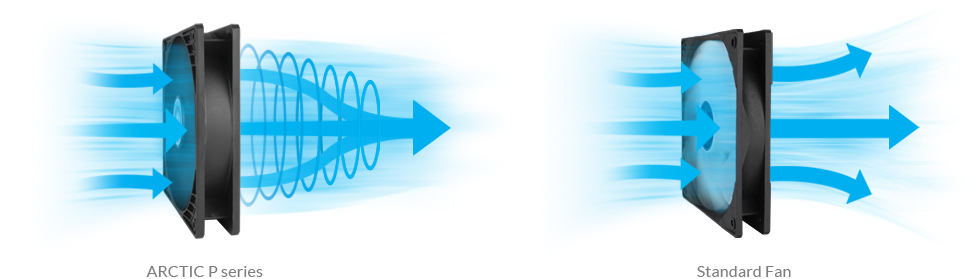

Optimised for Static Pressure
More Efficient Technology
For Continuous Operation
Maximum Quietness, Minimum Vibration

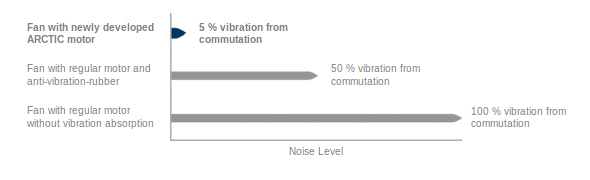

Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
Extended Life Span
The new ARCTIC motor has a four times longer service life through its low coil temperature.
Consequently, we have extended the warranty to 10 years.
200 to 1700 RPM regulated via PWM
Specifications
Performance
Suitable location*
Computer case
Type*
Fan
Fan diameter
14 cm
Supported processor sockets
Not supported
Compatible processor series
Not supported
Rotational speed (min)
200 RPM
Rotational speed (max)
1700 RPM
Noise level (high speed)
24.5 dB
Noise level
0.3 sone
Maximum airflow
72.8 cfm
Airflow
123.76 m³/h
Maximum air pressure
2.4 mmH2O
Pulse-width modulation (PWM) support
Yes
Bearing type

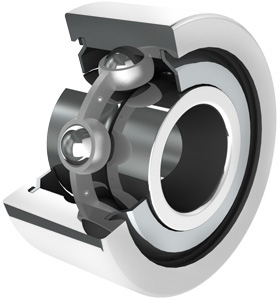

Fluid Dynamic Bearing (FDB)
Design
Product colour*
Black
Number of fans
1 fan(s)
Number of fan blades
5

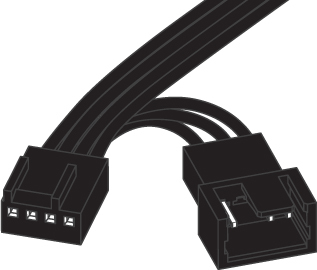

Fan connector
4-pin + 4-pin
Power
Power consumption (typical)
1.44 W
Voltage
12 V
Power
Starting voltage
3.9 V
Rated current
0.12 A
Weight & dimensions
Width
140 mm
Depth
140 mm
Height
27 mm
Weight
194 g
Cable length
0.4 m
Package width
143 mm
Package depth
143 mm
Package height
29 mm
Package weight
234 g
Packaging content
Package type
Box
Screws included
Yes
Number of screws
4
Other features
Country of origin
China
Logistics data
Harmonized System (HS) code
84733080
Additional Information
| EAN/UPC | 4895213701570 |
|---|---|
| MPN | ACFAN00126A |
