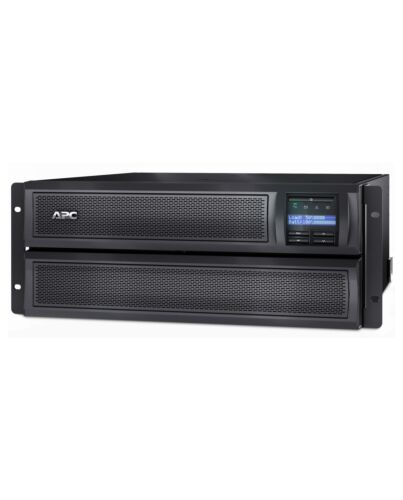

APC Smart-UPS 3kVA RM 120V SHIPBOARD
£4,059.10
APC Smart-UPS 3kVA RM 120V SHIPBOARD, Line-Interactive, 2.88 kVA, 2700 W, Sine, 70 V, 153 V
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 6x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The Smart-UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
Specifications
Features
UPS topology*
Line-Interactive
Output power capacity*
2.88 kVA
Output power*
2700 W
Waveform*
Sine
Input operation voltage (min)*
70 V
Input operation voltage (max)*
153 V
Input frequency*
50/60 Hz
Output operation voltage (min)
100 V
Output operation voltage (max)
120 V
Output frequency
50/60 Hz
Response time
2 ms
Emergency Power Off (EPO)
Yes
Noise level
55 dB
Audible alarm(s)
Yes
Audible alarm modes
Low battery alarm
Detachable power cord
No
Ports & interfaces
AC outlet types
NEMA 5-15R
Power plug
NEMA L5-30P
AC outlets quantity
3 AC outlet(s)
USB port
Yes
USB port type
USB Type-B
Serial interface
Yes
Serial interface type
RJ-45
Battery
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at full load
6.25 min
Typical backup time at half load
18.3 min
Battery life (max)
5 year(s)
Battery recharge time
3 h
Design
Form factor*
Rackmount
Design
Rack capacity
4U
Cable length
2.44 m
Product colour*
Black
Control type
Buttons
Display type
LED
LED indicators
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3048 m
Non-operating altitude
0 - 15240 m
Certificates
Compliance certificates
REACH, RoHS
Certification
REACH, RoHS, BSMI
Sustainability
Doesn't contain
Mercury
Weight & dimensions
Width
178 mm
Depth
483 mm
Height
432 mm
Weight
38.6 kg
Packaging data
Package width
588 mm
Package depth
663 mm
Package height
330 mm
Package weight
47.6 kg
Logistics data
Total carbon footprint (kg of CO2e)
2802.95
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 731304433668 |
|---|---|
| MPN | SMX3000RMX93 |
