Components

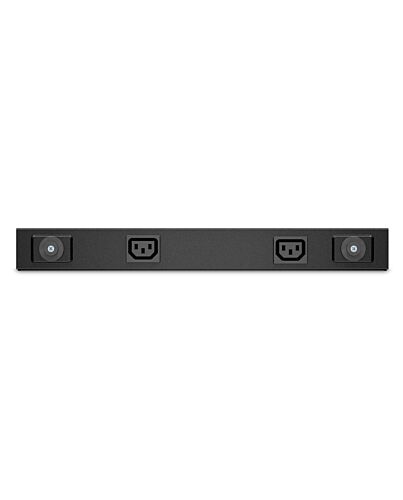

APC AP6020A power distribution unit (PDU) 13 AC outlet(s) 0U/1U Black
£89.08
APC AP6020A, Basic, 0U/1U, Single-phase, Horizontal/Vertical, Black, 13 AC outlet(s)
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (13) C13 -time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
Specifications
Design
PDU types*
Basic
Type
Single-phase
Rack capacity*
0U/1U
Mounting
Horizontal/Vertical
Product colour
Black
Ports & interfaces
AC outlets quantity*
13 AC outlet(s)
Power plug
C20 coupler
AC outlet types*
C13 coupler
Output connections
IEC 320 C13
Power
Nominal input voltage*
100-240 V
AC input frequency
50 - 60 Hz
Maximum current*
20 A
Load capacity
3680 VA
Maximum input current per phase
16 A
Maximum total current draw per phase
16 A
Maximum power
3680 W
Certificates
Compliance certificates
RoHS
Certificates
Certification
cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-15 - 60 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
Weight & dimensions
Width
44 mm
Depth
93 mm
Height
388 mm
Weight
1.5 kg
Packaging data
Package weight
2.02 kg
Package width
210 mm
Package depth
76 mm
Package height
436 mm
Logistics data
Total carbon footprint (kg of CO2e)
38.04
Additional Information
| EAN/UPC | 731304327806 |
|---|---|
| MPN | AP6020A |
| BRAND | APC |
