Components

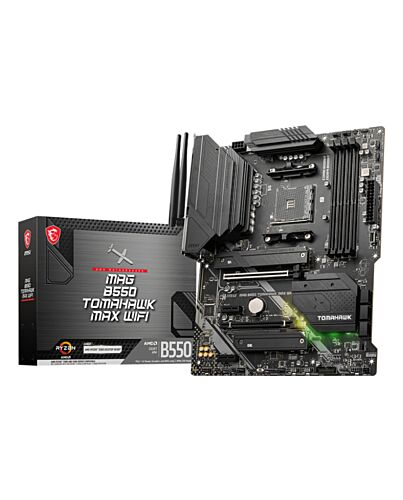

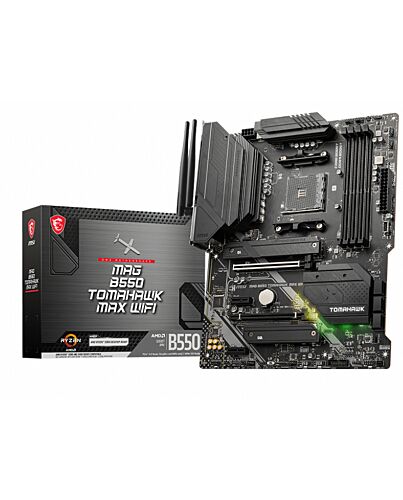

MSI MAG B550 TOMAHAWK MAX WIFI AMD B550 Socket AM4 ATX
£138.42
MSI MAG B550 TOMAHAWK MAX WIFI, AMD, Socket AM4, AMD Ryzen 3000 Series, Socket AM4, DDR4-SDRAM, 128 GB
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Conquer the Battlefield
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.
LIGHTNING GEN 4 M.2
Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.
LIGHTNING GEN 4 M.2
Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
Key Features
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
- Supports DDR4 Memory, up to 5100+(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
- Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience
- Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost
- 2.5G LAN with LAN Manager and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Multi-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire™
Specifications
Processor
Processor manufacturer*
AMD
Processor socket*
Socket AM4
Compatible processor series*
AMD Ryzen 3000 Series
Maximum number of SMP processors
1
Supported processor sockets
Socket AM4
Memory
Supported memory types*
DDR4-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Supported memory clock speeds
1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4533,4600,4733,5100 MHz
Maximum internal memory*
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
SATA III
RAID levels
0, 1, 10
Graphics
Maximum graphics card memory
16000 MB
Parallel processing technology support*
2-Way CrossFireX
Maximum resolution
4096 x 2160 pixels
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
1
Number of SATA III connectors*
6
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
6
Chassis intrusion connector
Yes
TPM connector
Yes
12V power connector
Yes
RGB LED pin header
Yes
Rear panel I/O ports
USB 2.0 ports quantity*
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
2
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity*
1
Ethernet LAN (RJ-45) ports*
2
PS/2 ports quantity
1
HDMI ports quantity*
1
DisplayPorts quantity
1
S/PDIF out port
Yes
Digital audio optical out
1
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet, Gigabit Ethernet
LAN controller
tek RTL8111H, tek RTL8125B
Wi-Fi*
No
Features
Motherboard chipset*
AMD B550
Audio chip
tek ALC1200
Audio output channels*
7.1 channels
Component for*
PC
Motherboard form factor*
ATX
Motherboard chipset family*
AMD
Number of mounting holes
9
Windows operating systems supported
Windows 10 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
BIOS
Clear CMOS jumper
Yes
Weight & dimensions
Width
305 mm
Depth
244 mm
Packaging content
Cables included
SATA
Drivers included
Yes
Additional Information
| EAN/UPC | 4719072957957 |
|---|---|
| MPN | MAG B550 TOMAHAWK MAXWIFI |
| BRAND | MSI |
