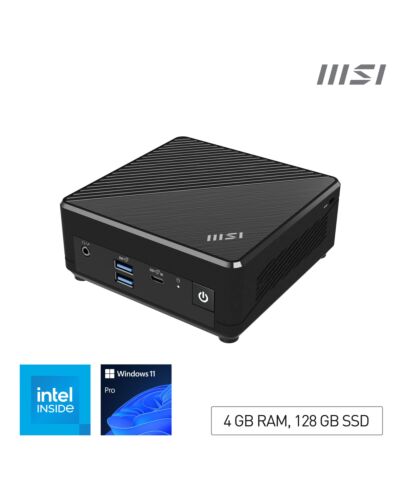

MSI Cubi N ADL S Intel N100 Desktop PC, NUC, SFF, Mini Computer, HTPC, (4GB RAM, 128GB SSD, Windows 11 PRO), Fanless/UHD Graphics/Type C/HDMI/DisplayPort/Dual LAN/WiFi 5/BT 5.1/VESA
£249.76
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
"Cubi N ADL S: The Energy Efficient Mini-PC
The MSI Cubi N ADL S is a small yet powerful mini-desktop with an incredibly compact 0.66L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & triple-monitor setups).
The CUBI N ADL S N100 FS 4GB 128GB W11P configuration is a complete system equipped with an Intel N100 processor, 8 GB of DDR4-3200MHz memory, 128 GB of M.2 SSD storage, Intel Wi-Fi 9462 & Bluetooth 5.1 connectivity, as well as Windows 11 Pro software pre-installed.
The easy-to-upgrade SFF case can house an M.2 SSD, as well as up to 16 GB of system memory (1 x DDR4 3200MHz SO-DIMMs), and is VESA-mountable for a cleaner desktop.
Thanks to its fanless design, the MSI Cubi N ADL S is not only an energy-efficient computing solution but is also very quiet.
Front I/O connectivity includes a Mic-in/Headphone-out combo jack, USB 3.2 Gen 2 Type-C (DP Alt.) and dual USB 3.2 Gen 2 Type-A ports. The rear I/O features dual 1Gbps ethernet LAN ports, HDMI 2.1, DisplayPort 1.4, and dual USB 2.0 ports."
The MSI Cubi N ADL S is a small yet powerful mini-desktop with an incredibly compact 0.66L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & triple-monitor setups).
The CUBI N ADL S N100 FS 4GB 128GB W11P configuration is a complete system equipped with an Intel N100 processor, 8 GB of DDR4-3200MHz memory, 128 GB of M.2 SSD storage, Intel Wi-Fi 9462 & Bluetooth 5.1 connectivity, as well as Windows 11 Pro software pre-installed.
The easy-to-upgrade SFF case can house an M.2 SSD, as well as up to 16 GB of system memory (1 x DDR4 3200MHz SO-DIMMs), and is VESA-mountable for a cleaner desktop.
Thanks to its fanless design, the MSI Cubi N ADL S is not only an energy-efficient computing solution but is also very quiet.
Front I/O connectivity includes a Mic-in/Headphone-out combo jack, USB 3.2 Gen 2 Type-C (DP Alt.) and dual USB 3.2 Gen 2 Type-A ports. The rear I/O features dual 1Gbps ethernet LAN ports, HDMI 2.1, DisplayPort 1.4, and dual USB 2.0 ports."
Key Features
- Featuring Intel Alder Lake Processors
- Fanless heatsink to keep the processor cool and silent whilst in operation
- Support 4K UHD Display
- Support up to three displays that allows you to see more and do more
- Dual network solution for both internet and intranet
- Get all the performance benefits from USB 3.2 Gen 2 and enjoy the best data transmission experience
- dTPM 2.0 design secures your confidential data with encryption keys
- Supports standard VESA-mount
Specifications
Processor
Processor manufacturer*
Intel
Processor family*
Intel® N
Processor model*
N100
Processor cores
4
Processor threads
4
Processor boost frequency
3.4 GHz
Processor frequency*
3.4 GHz
Processor cache
6 MB
Processor cache type
Smart Cache
Number of processors installed
1
Memory
Internal memory*
4 GB
Maximum internal memory*
16 GB
Internal memory type
DDR4-SDRAM
Memory layout (slots x size)
1 x 4 GB
Memory slots
1x SO-DIMM
Memory clock speed
3200 MHz
Storage
Total storage capacity*
128 GB
Storage media*
SSD
Optical drive type*
No
Number of storage drives installed
1
Number of storage drives supported
1
Total SSDs capacity
128 GB
Number of SSDs installed
1
SSD capacity
128 GB
SSD interface
M.2
SSD form factor
M.2
Card reader integrated
No
Graphics
Discrete graphics card*
No
On-board graphics card*
Yes
Discrete graphics card model*
Not available
On-board GPU manufacturer
Intel
On-board graphics card family
Intel® UHD Graphics
On-board graphics card model*
Intel® UHD Graphics
Network
Ethernet LAN*
Yes
LAN controller
Realtek RTL8111H
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller model
Intel Dual Band Wireless-AC 9462
Bluetooth
Yes
Bluetooth version
5.1
Ports & interfaces
USB 2.0 ports quantity*
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity*
1
USB Type-C DisplayPort Alternate Mode
Yes
Intel® Thunderbolt 4
No
Ports & interfaces
DVI port
No
HDMI ports quantity*
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.4
Ethernet LAN (RJ-45) ports
2
Combo headphone/mic port
Yes
DC-in jack
Yes
Design
Chassis type*
Mini PC
Colour name
Black
Volume
0.66 L
Placement supported
Horizontal/Vertical
VESA mounting
Yes
Water cooling system
No
Number of 2.5" bays
1
Cable lock slot
Yes
Cable lock slot type
Kensington
Product colour*
Black
Housing material
Plastic
Country of origin
China
Performance
Market positioning
Everyday
Powered by
MSI
Motherboard chipset
Intel SoC
Product type*
Mini PC
Software
Operating system installed*
Windows 11 Pro
Drivers included
Yes
Power
Power supply*
65 W
Weight & dimensions
Width*
124 mm
Depth*
124 mm
Height*
53.7 mm
Weight*
540 g
Package width
205 mm
Package depth
220 mm
Package height
94 mm
Package weight
1.39 kg
Packaging content
Mouse included
No
Keyboard included
No
VESA mount included
Yes
Screws included
Yes
Display
Display included*
No
Other features
Warranty period
2 year(s)
Additional Information
| EAN/UPC | 4711377196550 |
|---|---|
| MPN | CUBI N ADL S N100 FS 4GB 128GB W11P |
