ATEN 4-Port USB 2.0 CAT 5 Extender (up to100m)
£404.86
ATEN 4-Port USB 2.0 CAT 5 Extender (up to100m), Transmitter & receiver, Wired, 100 m, Cat5, Black, Metal
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

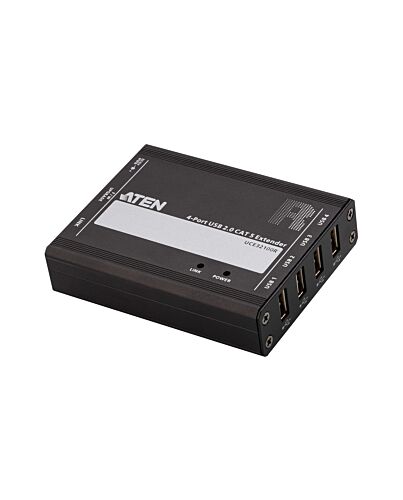

The UCE32100 is a 4-port USB 2.0 CAT 5 Extender is a two-unit device that serves as a Transmitter and a Receiver. It provides a durable, high quality connection that harnesses the full capability of the USB 2.0 standard, to ensure reliable data communication.
The UCE32100 can extend the USB transmission distance of up to 100 meters from your computer via a Cat 5 Ethernet cable. The power supply at the receiver UCE32100 unit helps provide sufficient power to any type of USB device, such as POS, flash drives, webcams, scanners, or printers, etc.
A true plug-and-play solution, the UCE32100 is compatible with all leading operating systems. With its durable metal housing, this high-quality USB extender provides a fast and flexible solution for industrial applications. In addition, the compact size with wall mounting and din rail included enables space-saving installation.
1x UCE32100T USB 2.0 CAT 5 Transmitter
1x UCE32100R USB 2.0 CAT 5 Receiver
1x LIN6-04U1-V1BG USB 2.0 Type-A Male to Type-B Male Cable
1x 0AD8-8005-0MA Power Adapter
1x LIN2-418K-E12G Power Cord
4x Mounting Kit
2x Din Rail
2x DC Jack Lock Kit
2x Rubber Feet Sets
1x User Instructions
The UCE32100 can extend the USB transmission distance of up to 100 meters from your computer via a Cat 5 Ethernet cable. The power supply at the receiver UCE32100 unit helps provide sufficient power to any type of USB device, such as POS, flash drives, webcams, scanners, or printers, etc.
A true plug-and-play solution, the UCE32100 is compatible with all leading operating systems. With its durable metal housing, this high-quality USB extender provides a fast and flexible solution for industrial applications. In addition, the compact size with wall mounting and din rail included enables space-saving installation.
1x UCE32100T USB 2.0 CAT 5 Transmitter
1x UCE32100R USB 2.0 CAT 5 Receiver
1x LIN6-04U1-V1BG USB 2.0 Type-A Male to Type-B Male Cable
1x 0AD8-8005-0MA Power Adapter
1x LIN2-418K-E12G Power Cord
4x Mounting Kit
2x Din Rail
2x DC Jack Lock Kit
2x Rubber Feet Sets
1x User Instructions
Key Features
- True USB 2.0 transparent extension over CAT 5 cabling up to 100 meters
- USB Lossless – Higher compatibility of remote USB devices
- An integrated four port hub allows for extension of up to four USB devices without the need for an additional hub
- Power supply for remote unit to ensure power delivery to multiple devices at once
Specifications
Features
Type*
Transmitter & receiver
Connectivity technology*
Wired
Maximum transfer distance
100 m
Cable types supported
Cat5
Product colour
Black
Material
Metal
LED indicators
Yes
Transmitter
Transmitter local keyboard/mouse port type
USB
RJ-45 ports quantity (transmitter)
1
Receiver
Receiver local keyboard/mouse port type
USB
RJ-45 ports quantity (receiver)
1
Packaging data
Package width
100 mm
Package depth
283 mm
Package height
173 mm
Package weight
1.21 kg
Packaging content
Manual
Yes
Quick installation guide
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Technical details
Dimensions (WxDxH)
101.5 x 79 x 24.4 mm
Weight
900 g
Logistics data
Master (outer) case net weight
4.5 kg
Harmonized System (HS) code
84733080
Master (outer) case width
292 mm
Master (outer) case length
517 mm
Master (outer) case height
194 mm
Master (outer) case gross weight
6.7 kg
Products per master (outer) case
5 pc(s)
Additional Information
| EAN/UPC | 4719264648854 |
|---|---|
| MPN | UCE32100 |
