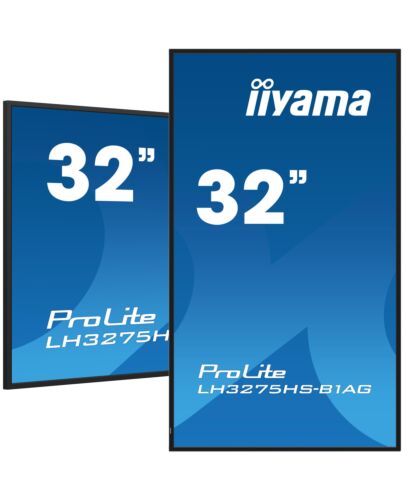

iiyama LH3275HS-B1AG Signage Display Digital signage flat panel 80 cm (31.5") LCD Wi-Fi 500 cd/m² Fu
£475.20
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH3275HS f iiyama can be operated in landscape or portrait orientation in continual around the clock environments, 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and install applications directly to it. The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The FailOver feature ensures your content is always actively displayed through your choice of inputs. The built-in (and removable) WiFi ule means this series is ready for remote content delivery using your network. With the EShare app you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.
Reasons To Buy
Android OS

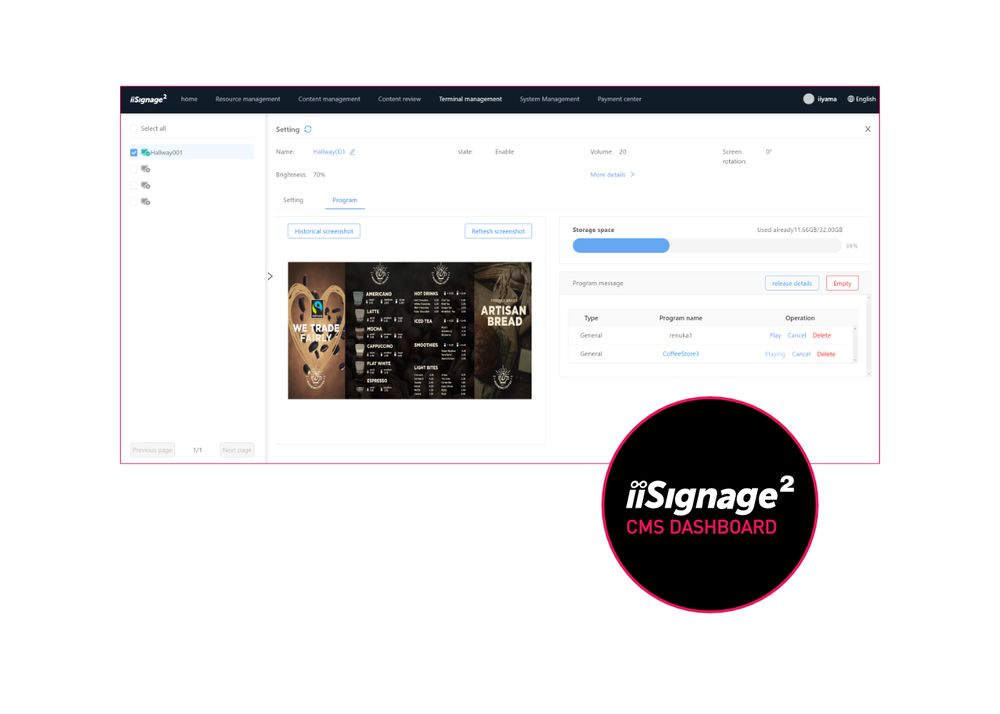

iiSignage²
Signal FailOver
Media player
Full HD
Specifications
Display
Panel type
IPS
Display diagonal*
80 cm (31.5")
Display technology*
LCD
Display resolution*
1920 x 1080 pixels
Display brightness*
500 cd/m²
HD type*
Full HD
Touchscreen*
No
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
1200:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.364 x 0.364 mm
Active display area (W x H)
698.4 x 392.85 mm
Display diagonal (metric)
80 cm
Maximum frame rate
60 fps
Horizontal scan range
28 - 160 kHz
Native refresh rate
60 Hz
Haze rate
25%
RGB colour space
sRGB
Ports & interfaces
HDMI ports quantity*
2
HDMI version
2.0
DisplayPorts quantity*
1
DisplayPort version
1.2
USB port*
Yes
USB ports quantity
2
USB version
2.0
Ethernet LAN (RJ-45) ports
1
PC Audio in
Yes
RS-232C
Yes
Audio Return Channel (ARC)
Yes
Audio
Built-in speaker(s)*
Yes
Number of built-in speakers
2
RMS rated power
20 W
Design
Product design*
Digital signage flat panel
Placement supported*
Indoor
Orientation
Horizontal/Vertical
Product colour*
Black
VESA mounting*
Yes
Panel mounting interface
200 x 200 mm
Bezel width (bottom)
1.19 cm
Bezel width (side)
1.19 cm
Bezel width (top)
1.19 cm
Bezel colour
Black
Anti-glare screen
Yes
Performance
Purpose*
Universal
On Screen Display (OSD)
Yes
Number of OSD languages
11
On Screen Display (OSD) languages
Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days)
24/7
HDCP
Yes
HDCP version
2.2
Mean time between failures (MTBF)
44000 h
Power
Power consumption (typical)*
46 W
Power consumption (standby)*
0.4 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
G
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
46 kWh
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Energy efficiency scale
A to G
Computer system
Built-in processor*
Yes
Processor manufacturer
ARM
Processor family
ARM Cortex
Processor architecture
ARM Cortex-A73
Processor cores
4
Internal memory
4 GB
On-board graphics card el
ARM Mali-G52
Internal storage capacity
32 GB
Operating system installed
Android 11
Weight & dimensions
Display width
725.5 mm
Display depth
54 mm
Display height
421.8 mm
Display weight
5.2 kg
Width
725.5 mm
Depth
54 mm
Height
421.8 mm
Weight
5.2 kg
Packaging data
Package width
824 mm
Package depth
119 mm
Package height
554 mm
Package weight
7.3 kg
Packaging content
Remote control included
Yes
Batteries included
Yes
Cables included
AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Certificates
Certification
CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH
Logistics data
Harmonized System (HS) code
85285210
Network
Ethernet LAN*
Yes
Wi-Fi*
Yes
Wi-Fi standards
Wi-Fi 5 (802.11ac)
Technical details
Playback media
✓
User controls
picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temperature, colour control, picture reset), screen (zoom e, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), Configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation, logo setting, animation setting, monitor ID, Group ID, monitor information, HDMI version, configuration 2 reset), advanced option (no signal image, IR control, power LED light, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, auto power off, SDM settings, advanced option reset)
Sustainability certificates
ErP
Compliance certificates
CE, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Quick start guide
Yes
Power supply type
Internal
Housing material
Metal
Additional Information
| EAN/UPC | 4948570124220. |
|---|---|
| MPN | LH3275HS-B1AG |
| BRAND | Iiyama |
