Components

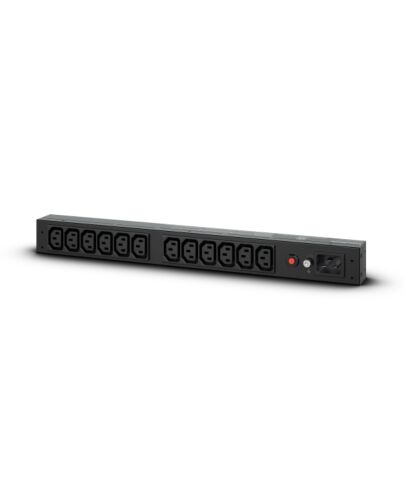

CyberPower PDU20BHVIEC12R power distribution unit (PDU) 12 AC outlet(s) 1U Black
£83.96
CyberPower PDU20BHVIEC12R, Basic, 1U, Single-phase, Horizontal/Vertical, Steel, Black
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The CyberPower 12-outlet (12 Rear) rack mount basic power distribution unit (PDU20BHVIEC12R) provides 208V/230V 20A output. It distributes power to 12 IEC-320 C13 receptacles from a single IEC-320 C20 plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- 12 IEC-320 C13 output receptacles
- Single IEC-320 C20 plug
- 20-amp electrical capacity with circuit breaker
- 208/230V - 50/60Hz
- 1U rack mount
- 10-ft. power cord
- 12 IEC-320 C13 output receptacles
- Single IEC-320 C20 plug
- 20-amp electrical capacity with circuit breaker
- 208/230V - 50/60Hz
- 1U rack mount
- 10-ft. power cord
Key Features
- Overload Protection
- Adjustable Mounting Brackets
- Industrial-grade Metal Housing
- Cord Retention Tray
Specifications
Design
PDU types*
Basic
Type
Single-phase
Rack capacity*
1U
Mounting
Horizontal/Vertical
Housing material
Steel
Product colour
Black
Ports & interfaces
AC outlets quantity*
12 AC outlet(s)
Power plug
C20 coupler
AC outlet types*
C13 coupler
Features
Cable length
3.05 m
Power
Nominal input voltage*
200 - 240 V
AC input frequency
50 / 60 Hz
Maximum current*
16 A
Nominal output voltage
200 - 240 V
Power protection features
Overload
Surge protection
Yes
Circuit breaker
Yes
Certificates
Compliance certificates
RoHS
Certification
UL60950_1 ETL, CSA C22.2
Sustainability
Sustainability compliance
Yes
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Operating temperature (T-T)
32 - 95 °F
Weight & dimensions
Width
445 mm
Depth
38.1 mm
Height
44.5 mm
Weight
900 g
Weight (imperial)
0.907 kg (2 lbs)
Dimensions (W x D x H) (imperial)
444.5 x 38.1 x 44.5 mm (17.5 x 1.5 x 1.75")
Packaging content
Packaging content
PDU20BHVIEC12R, User's Manual, Product Registration Card, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit
Packaging data
Package weight
15 kg
Package width
530 mm
Package depth
330 mm
Package height
233 mm
Logistics data
Warranty period
2 year(s)
Additional Information
| EAN/UPC | 4712364144387 |
|---|---|
| MPN | PDU20BHVIEC12R |
| BRAND | CYBERPOWER |
