ATEN 16-Port 17" LCD KVM Switch (USB - PS/2 VGA) with USB Peripheral port
£1,363.06
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

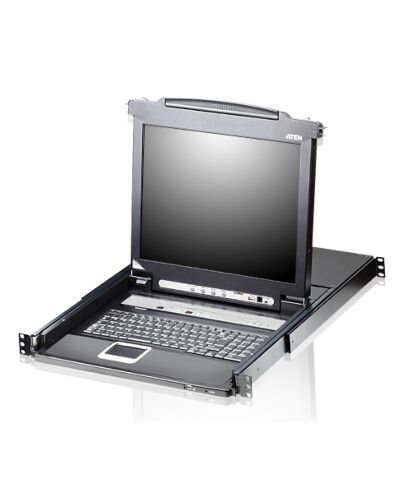

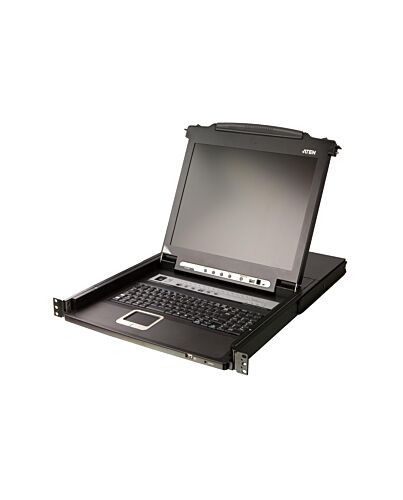

The CL5716 Slideaway – LCD KVM Switch series is a control unit that allows access to multiple computers f a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716, so that up to 512 computers can all be controlled f a single KVM console.
The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17", 17.3" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. To enhance security, the CL5716 offers the option to use a fingerprint identification system for controlling access to both the CL5716 itself and the servers it commands.
The CL5716 is built on a ular design. The KVM section can be detached f the switch section for convenient maintenance and repair.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.
The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17", 17.3" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. To enhance security, the CL5716 offers the option to use a fingerprint identification system for controlling access to both the CL5716 itself and the servers it commands.
The CL5716 is built on a ular design. The KVM section can be detached f the switch section for convenient maintenance and repair.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.
Key Features
- Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions
- Integrated KVM console with 17", 17.3" or 19" LED-backlit LCD monitor in a Slideaway™ housing
- Daisy-chain up to 31 additional units – control up to 512 computers f a single console
- USB port allows each computer to access USB peripherals (inapplicable to CL5716MW)
Specifications
Display
Display diagonal*
43.2 cm (17")
Display resolution*
1280 x 1024 pixels
Display
LCD
Display brightness
250 cd/m²
Contrast ratio (typical)
1000:1
Viewing angle, horizontal
170°
Viewing angle, vertical
160°
On Screen Display (OSD)
Yes
Pixel pitch
0.264 x 0.264 mm
Display type
TFT
Response time
5 ms
Supported resolutions
1280 x 1024 @75 Hz; DDC2B, 1920 x 1200 @ 60 Hz
Technical details
Material
Metal, Plastic
Product colour
Black
Hot-Plug support
Yes
Operating relative humidity (H-H)
0 - 80%
Built-in KVM switch
Yes
KVM switch ports quantity
16
Maximum resolution
1920 x 1200 pixels
Rack mounting
Yes
Console port
SPHD-18
Daisy chain
Yes
Number of computers controlled
512
On/off switch
Yes
LED indicators
Yes
Push button
Yes
Auto scan delay (min)
1 s
Auto scan delay (max)
255 s
Compliance certificates
RoHS
Rack capacity*
1U
Ports & interfaces
Keyboard port type
USB
I/O ports
1x DB-25
1x RJ-11
Mouse port type
USB
Video port type
VGA
Serial ports quantity
1
RJ-45 ports quantity
1
USB 2.0 Type-A ports quantity
2
Keyboard
Built-in touchpad
Yes
Keyboard language
US English
Keyboard layout
QWERTY
Hot keys
Yes
Power
AC adapter input voltage
100 - 240 V
AC adapter frequency
50/60 Hz
Input current
1 A
AC (power) in
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
System requirements
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Weight & dimensions
Width
642.7 mm
Height
44 mm
Depth
480 mm
Weight
13.6 kg
Packaging data
Package weight
16.9 kg
Package width
668 mm
Package depth
718 mm
Package height
135 mm
Packaging content
Cables included
AC, KVM
Quick installation guide
Yes
Manual
Yes
Rack mount kit
Yes
Logistics data
Master (outer) case net weight
14.1 kg
Master (outer) case width
668 mm
Master (outer) case length
718 mm
Master (outer) case height
135 mm
Master (outer) case gross weight
16.9 kg
Products per master (outer) case
1 pc(s)
Additional Information
| EAN/UPC | 4719264642456 |
|---|---|
| MPN | CL5716M |
| BRAND | ATEN |
