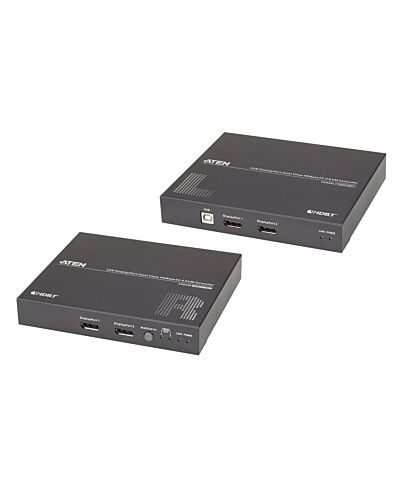

ATEN USB DisplayPort Dual View HDBaseT™ 2.0 KVM Extender (4K@100m for Single View)
£1,443.96
ATEN USB DisplayPort Dual View HDBaseT™ 2.0 KVM Extender (4K@100m for Single View), Transmitter & receiver, Wired, 4096 x 2160 pixels, Black, Metal, DisplayPort
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ATEN CE924 USB DisplayPort Dual View HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, and RS-232 signals. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as it provides long-reach capability that extends Full HD 1080P signals up to 150 meters. In addition, CE924 supports single 4K display or dual 1080p display for DisplayPort video output resolution up to 100m by using a single Cat6 / 2L-2910 Cat 6 cable.
With an easy cable installation supporting various signals, the CE924 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
1x CE924L USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Local Unit)
1x CE924R USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Remote Unit)
2x DisplayPort cables
1x pink audio jack cable set
1x green audio jack cable set
1x USB Type-A to Type-B cable
2x power adapters
2x mounting kits
1x user instructions
With an easy cable installation supporting various signals, the CE924 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
1x CE924L USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Local Unit)
1x CE924R USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Remote Unit)
2x DisplayPort cables
1x pink audio jack cable set
1x green audio jack cable set
1x USB Type-A to Type-B cable
2x power adapters
2x mounting kits
1x user instructions
Key Features
- Allows dual view DisplayPort access to a computer and KVM control f a remote console
- Extends video, audio, USB, and RS-232 signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable
- Supports 4 ports USB 2.0 full speed hub on the receiver–allowing to connect up to 4 various USB 2.0 peripheral
- Long distance with superior video quality
- HDBaseT™ Standard e up to 4K @ 100 m (Cat 6 / 6a / 2L-2910); (single view only; dual-view resolution up to 1080P)
- HDBaseT™ Long-Reach e up to 1080P @ 150 m (single view only; dual-view resolution up to 720P)
Specifications
Features
Type*
Transmitter & receiver
Connectivity technology*
Wired
Maximum digital resolution
4096 x 2160 pixels
Product colour
Black
Material
Metal
LED indicators
Yes
Transmitter
Transmitter video port type
DisplayPort
RJ-45 ports quantity (transmitter)
1
Receiver
Receiver local video port type
DisplayPort
RJ-45 ports quantity (receiver)
1
Ports & interfaces
USB port type
USB Type-A
Weight & dimensions
Transmitter width
15.4 cm
Transmitter depth
17.4 cm
Transmitter height
2.88 cm
Transmitter weight
820 g
Receiver width
15.6 cm
Receiver depth
17.4 cm
Receiver height
2.88 cm
Receiver weight
850 g
Packaging data
Package width
131 mm
Package depth
540 mm
Package height
233 mm
Package weight
4.04 kg
Packaging content
AC adapter included
Yes
Cables included
DisplayPort, USB Type-A to USB Type-B
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Technical details
Weight
3.08 kg
Logistics data
Master (outer) case net weight
3.08 kg
Harmonized System (HS) code
84733080
Master (outer) case width
247 mm
Master (outer) case length
556 mm
Master (outer) case height
153 mm
Master (outer) case gross weight
4.28 kg
Products per master (outer) case
1 pc(s)
Additional Information
| EAN/UPC | 4710469340611 |
|---|---|
| MPN | CE924 |
| BRAND | ATEN |
