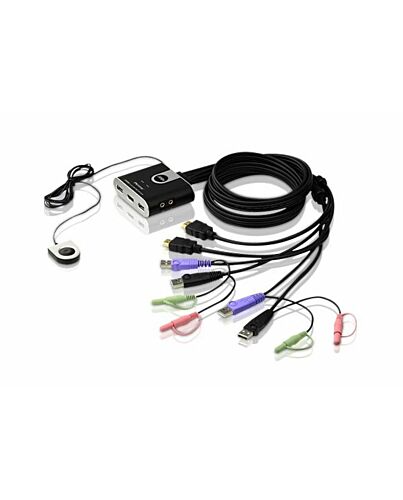

ATEN 2-Port USB HDMI KVM Switch with Audio
£70.56
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The CS692 2-Port USB HDMI/Audio Cable KVM Switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HD display console. The CS692 Switch takes a giant step forward f prior cable KVM els in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a upgrade function that allows you to keep up with latest available versions.
1x CS692 2-Port USB HDMI/Audio Cable KVM Switch with Remote Port Selector
1x User Instructions
2x Hotkey Stickers
1x CS692 2-Port USB HDMI/Audio Cable KVM Switch with Remote Port Selector
1x User Instructions
2x Hotkey Stickers
Key Features
- Superior video quality - up to 1920 x 1200 and 1080p
- Computer selection via a remote port selector, hotkeys, and USB mouse
- Independent switching of the KVM and Audio focus - one computer has the KVM focus and the other the Audio focus
- Built-in all-in-one cables (2 x 1.2 m) and bus-powered design
Specifications
Ports & interfaces
Number of computers controlled*
2
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
HDMI
HDMI ports quantity
2
Console ports*
3.5mm headphone, 3.5mm mic, HDMI, USB A
Console USB ports quantity
2
USB 2.0 Type-A hub ports quantity
4
USB connector type
USB Type-A
Audio connections
Yes
Headphone outputs
3
Number of microphone inputs
3
Performance
HD type*
WUXGA
Maximum resolution*
1920 x 1200 pixels
Video bandwidth
60 Hz
Scan interval
3,5,10,20 s
Design
Rack mounting*
No
Product colour*
Black
Housing material
Plastic
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Display
Built-in display*
No
Power
Power source
DC
Input voltage
5 V
Power
Power consumption (typical)
0.72 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
82.4 mm
Depth
66.5 mm
Height
25.2 mm
Weight
409 g
Packaging data
Package width
70 mm
Package depth
163 mm
Package height
235 mm
Package weight
550 g
Packaging content
Quick installation guide
Yes
Manual
Yes
Logistics data
Master (outer) case net weight
4.09 kg
Harmonized System (HS) code
85176200
Master (outer) case width
395 mm
Master (outer) case length
405 mm
Master (outer) case height
182 mm
Master (outer) case gross weight
6.13 kg
Products per master (outer) case
10 pc(s)
Additional Information
| EAN/UPC | 4710423776814 |
|---|---|
| MPN | CS692 |
| BRAND | ATEN |
