Components

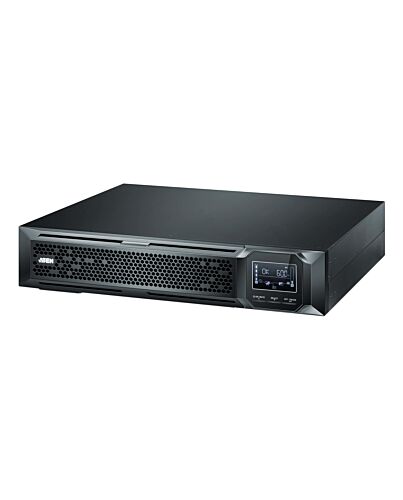

ATEN 230V 50/60Hz, 3000VA/3000W, 9Ah
£1,274.63
ATEN 230V 50/60Hz, 3000VA/3000W, 9Ah, Double-conversion (Online), 3 kVA, 3000 W, Sine, 110 V, 300 V
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ATEN Professional Online UPS is an exceptional and innovative electrical apparatus that provides emergency power to a load when the input power source, or the mains, fails. The basic technology of an online UPS is the same as in a standby or line-interactive UPS, however, the ATEN Professional Online UPS provides a much greater current of AC-to-DC battery-charger/rectifier where the rectifier and inverter are designed to run continuously with improved cooling systems.
1x Online UPS
1x Rack Mounting Kit
1x Rail Slide Kit
1x RS-232 Cable
1x USB Type A to B Cable
4x Power Cables
1x Tower Stand set
1x User Instructions
1x Online UPS
1x Rack Mounting Kit
1x Rail Slide Kit
1x RS-232 Cable
1x USB Type A to B Cable
4x Power Cables
1x Tower Stand set
1x User Instructions
Key Features
- True double-conversion – Output power factor is 1 (maxium), which means all of the power supplied is being used for productive work and makes work the most efficient
- Programmable power management outlets – Users can easily and independently control load segments. During power failure, this feature enables users to extend battery time to mission-critical devices by shutting down noncritical devices
- Emergency Power Off function (EPO) – EPO connector at rear panel allows emergency UPS Power Off from a remote location
- SNMP + USB + RS-232 multiple communications – Allows either USB or RS-232 communication ports to work with SNMP interface simultaneously
Specifications
Features
UPS topology*
Double-conversion (Online)
Output power capacity*
3 kVA
Output power*
3000 W
Waveform*
Sine
Input operation voltage (min)*
110 V
Input operation voltage (max)*
300 V
Input frequency*
40/70 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Response time
4 ms
Efficiency
90%
Efficiency (ECO mode)
96%
Crest factor
3:1
ECO mode
Yes
Noise level
50 dB
Ports & interfaces
AC outlet types
C13 coupler, C19 coupler
Power plug
C20 coupler
AC outlets quantity
9 AC outlet(s)
USB port
Yes
USB 2.0 ports quantity
1
USB port type
USB Type-B
Serial interface
Yes
Serial interface type
RS-232
Serial ports quantity
1
RS-232 ports
1
Ethernet LAN (RJ-45) ports
2
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
9 Ah
Battery voltage
72 V
Number of battery cells
6
Number of batteries supported
6
Typical backup time at full load
2.96 min
Typical backup time at half load
10.1 min
Battery recharge time
3 h
Charging current
2 A
Battery
Cold start
Yes
Design
Form factor*
Rackmount/Tower
Rack capacity
2U
Cooling type
Active
Built-in fan
Yes
Product colour*
Black
LED indicators
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
20 - 90%
Storage relative humidity (H-H)
10 - 95%
Certificates
Certification
CE
RoHS
Packaging content
Cables included
Output power cable, Power load cable, RS-232, USB cable
Manual
Yes
Weight & dimensions
Width
438 mm
Depth
88 mm
Height
630 mm
Weight
27.6 kg
Packaging data
Package width
88 mm
Package depth
438 mm
Package height
630 mm
Package weight
34.8 kg
Logistics data
Master (outer) case net weight
27.6 kg
Harmonized System (HS) code
85078000
Master (outer) case width
600 mm
Master (outer) case length
760 mm
Master (outer) case height
240 mm
Master (outer) case gross weight
34.8 kg
Products per master (outer) case
1 pc(s)
Additional Information
| EAN/UPC | 4719264647994 |
|---|---|
| MPN | OL3000HV |
| BRAND | ATEN |
