Components
ATEN HDMI Extender (T+R) over 1 CAT5e/6 Cable (70m) ,4K / HDBaseT-Lite (Class B)
£282.32
ATEN HDMI Extender (T+R) over 1 CAT5e/6 Cable (70m) ,4K / HDBaseT-Lite (Class B), 3840 x 2160 pixels, AV transmitter & receiver, 70 m, Wired, Black, HDCP
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

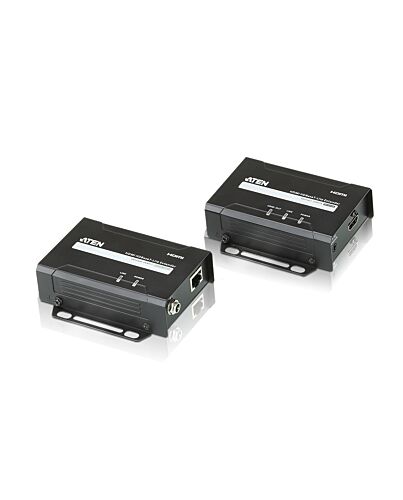

The VE801 HDMI HDBaseT-Lite Extender extends an HDMI signal up to 70m f the HDBaseT source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801 all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801 is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.
1x VE801T/R HDMI HDBaseT-Lite Extender
2x 0AD6-1F05-26EG Power Adapters
1x User Instructions
1x VE801T/R HDMI HDBaseT-Lite Extender
2x 0AD6-1F05-26EG Power Adapters
1x User Instructions
Key Features
- Extends HDMI signals over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
- HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
- Superior video quality – up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
- HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
- Plug-and-play
- Rack-mountable
Specifications
Features
Type*
AV transmitter & receiver
Maximum resolution*
3840 x 2160 pixels
Cable types supported
Cat5, Cat6, Cat6a
Maximum transfer distance
70 m
LED indicators
Yes
Supported video es
1080p
Bandwidth
340 MHz
HDCP
Yes
Material
Metal
Product colour
Black
Ports & interfaces
Connectivity technology*
Wired
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
1
DC-in jack
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Weight
780 g
Receiver dimensions (WxDxH)
34.3 x 98.6 x 30 mm
Receiver weight
250 g
Transmitter dimensions (WxDxH)
34.3 x 98.6 x 30 mm
Transmitter weight
240 g
Packaging data
Package width
59 mm
Package depth
239 mm
Package height
160 mm
Package weight
841 g
Packaging content
AC adapter included
Yes
Technical details
Compliance certificates
RoHS
Logistics data
Master (outer) case width
250 mm
Master (outer) case length
325 mm
Master (outer) case height
175 mm
Master (outer) case gross weight
4.6 kg
Master (outer) case net weight
3.9 kg
Products per master (outer) case
5 pc(s)
Additional Information
| EAN/UPC | 4719264642715 |
|---|---|
| MPN | VE801 |
| BRAND | ATEN |
