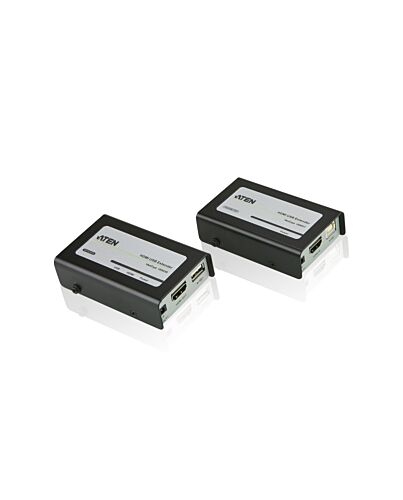

ATEN USB & HDMI Extender CAT5e/6, USB2.0 Full Speed (12Mbit/s) 1080P (40m) / 1080i (60m)
£127.25
ATEN USB & HDMI Extender CAT5e/6, USB2.0 Full Speed (12Mbit/s) 1080P (40m) / 1080i (60m), 1920 x 1200 pixels, AV transmitter & receiver, 60 m, Wired, 3D, HDCP
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The VE803 HDMI USB Extender extends an HDMI signal up to 60 meters f the HDMI source using two Cat 5e cables. It is capable of sending 1080i signals up to 60 meters and 1080p signals up to 40 meters.
The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device f the remote display, or control the remote display through the local unit.
1x VE803T HDMI USB Extender
1x VE803R HDMI USB Extender
1x 0AD6-1705-10EG Power Adapter
1x USB Cable (1.8 m)
1x Mounting Kit
1x User Instructions
The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device f the remote display, or control the remote display through the local unit.
1x VE803T HDMI USB Extender
1x VE803R HDMI USB Extender
1x 0AD6-1705-10EG Power Adapter
1x USB Cable (1.8 m)
1x Mounting Kit
1x User Instructions
Key Features
- Uses two Cat 5e cables to connect the local and the remote units
- Extends 1080p by 40m; extend 1080i by 60m
- Superior video quality – HDTV resolutions of 480p, 720p, 1080i, 1080p (1920 x 1080), VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
- Supports USB touch panel
- 8 segment equalization adjustment switch optimizes display quality
- Support Dolby True HD and DTS HD Master Audio
- Built-in 8KV/15KV ESD protection
- Transparent USB Support – supports all USB 2.0 full speed device (up to 12 Mbps)
- Supports wide screen formats
- HDMI (3D, Deep Color); HDCP compatible – signaling rates up to 2.25Gbits
- Powered local unit via USB cable
Specifications
Features
Type*
AV transmitter & receiver
Maximum resolution*
1920 x 1200 pixels
Cable types supported
Cat5e
Maximum transfer distance
60 m
Extended display identification data (EDID)
Yes
Electrostatic Discharge (ESD) protection
Yes
Electrostatic Discharge (ESD) protection
15 kV
Supported video es
1080i, 1080p
Supported graphics resolutions
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Bandwidth
6.75 Gbit/s
Bandwidth
225 MHz
HDCP
Yes
Material
Metal
3D
Yes
Product colour
Black
Ports & interfaces
Connectivity technology*
Wired
HDMI in
1
Number of HDMI outputs
1
USB connector type
USB Type-A, USB Type-B
DC-in jack
Yes
Power
Operating voltage (transmitter)
5 V
Operating voltage (receiver)
5 V
Power consumption (TX)
1.04 W
Power consumption (RX)
0.75 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Weight
495 g
Receiver dimensions (WxDxH)
90 x 57.4 x 24 mm
Receiver weight
160 g
Transmitter dimensions (WxDxH)
90 x 57.4 x 24 mm
Transmitter weight
160 g
Packaging data
Package width
59 mm
Package depth
239 mm
Package height
160 mm
Package weight
652 g
Packaging content
AC adapter included
Yes
Cables included
USB
Manual
Yes
Mounting kit
Yes
Logistics data
Master (outer) case width
315 mm
Master (outer) case length
490 mm
Master (outer) case height
338 mm
Master (outer) case gross weight
13.5 kg
Master (outer) case net weight
9.9 kg
Products per master (outer) case
20 pc(s)
Additional Information
| EAN/UPC | 4710423779716 |
|---|---|
| MPN | VE803 |
| BRAND | ATEN |
