ATEN 2-Port USB 3.0 4K HDMI KVMP™ Switch with Audio Mixer e
£240.84
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

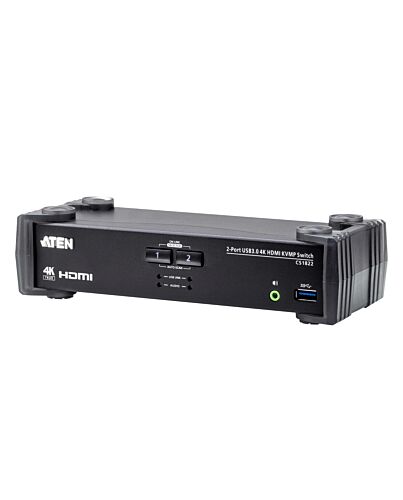

The ATEN CS1822 KVMP™ Switch offers effortless management of two HDMI interface computers f a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1822 optimizes user experience of multitasking.
1x CS1822 2-Port USB 3.0 4K HDMI KVMP™ Switch
2x LIN6-19V1-V18G HDMI 2.0 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cables
1x LIN2-418K-E12G Power Cord
1x 0AD8-8005-40MG Power Adapter
1x User Instructions
1x CS1822 2-Port USB 3.0 4K HDMI KVMP™ Switch
2x LIN6-19V1-V18G HDMI 2.0 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cables
1x LIN2-418K-E12G Power Cord
1x 0AD8-8005-40MG Power Adapter
1x User Instructions
Key Features
- Superior video quality – 4096 x 2160 @ 60Hz and 3840 x 2160 @ 60Hz; 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Supports Video DynaSync
- Audio Mixer es – mixes up to two audio sources as audio output
- Computer selection via pushbuttons, hotkeys, mouse and RS-232 commands
Specifications
Ports & interfaces
Number of computers controlled*
2
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
HDMI
HDMI ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
2
Console ports*
3.5mm headphone, HDMI, USB A
Console USB ports quantity
2
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
USB connector type
USB Type-A, USB Type-B
Audio connections
Yes
Headphone outputs
3
Number of microphone inputs
1
DC-in jack
Yes
Performance
HD type*
4K Ultra HD
Maximum resolution*
4096 x 2160 pixels
Video bandwidth
60 Hz
Scan interval
1,5,99 s
Design
Product colour*
Black
Housing material
Metal, Plastic
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Display
Built-in display*
No
Power
Power source
DC
Input voltage
5 V
Power consumption (typical)
1.78 W
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
210 mm
Depth
88 mm
Height
55.5 mm
Weight
1.39 kg
Packaging data
Package width
100 mm
Package depth
283 mm
Package height
173 mm
Package weight
1.83 kg
Packaging content
Quick installation guide
Yes
Manual
Yes
Logistics data
Master (outer) case net weight
6.95 kg
Harmonized System (HS) code
85176200
Master (outer) case width
292 mm
Master (outer) case length
517 mm
Master (outer) case height
194 mm
Master (outer) case gross weight
9.6 kg
Products per master (outer) case
5 pc(s)
Additional Information
| EAN/UPC | 4719264649417 |
|---|---|
| MPN | CS1822 |
| BRAND | ATEN |
