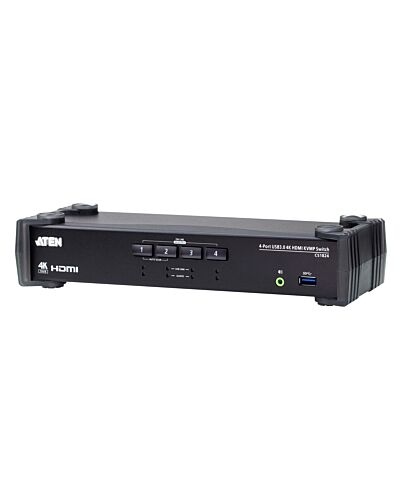

ATEN 4-Port USB 3.0 4K HDMI KVMP™ Switch with Audio Mixer e
£364.67
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ATEN CS1824 KVMP™ Switch offers effortless management of four HDMI interface computers f a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1824 optimizes user experience of multitasking.
1x CS1824 4-Port USB 3.0 4K HDMI KVMP™ Switch
4x LIN6-19V1-V18G HDMI 2.0 Cables
4x LIN6-11C1-E12G USB 3.0 Cables
4x LIN5-0205-21CG Audio Cables
1x LIN2-418K-E12G Power Cord
1x 0AD8-8005-40MG Power Adapter
1x User Instructions
1x CS1824 4-Port USB 3.0 4K HDMI KVMP™ Switch
4x LIN6-19V1-V18G HDMI 2.0 Cables
4x LIN6-11C1-E12G USB 3.0 Cables
4x LIN5-0205-21CG Audio Cables
1x LIN2-418K-E12G Power Cord
1x 0AD8-8005-40MG Power Adapter
1x User Instructions
Key Features
- One USB keyboard/mouse and one HDMI monitor control four computers and share two USB peripherals
- Supports superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
- Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
- Built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Audio Mixer es – mixes up to two audio sources as audio output
- Computer selection via pushbuttons, hotkeys, mouse1, and RS-232 commands
- ATEN default EDID e – smooth power-up, high-quality display and resolution optimization to eliminate compatibility issue
- Independent switching of KVM, USB peripheral, and stereo audio focus2
- HDMI 2.0 compliant; HDCP 2.2 compliant
- Supports HD Audio2
- Power on detection
- upgradable
Specifications
Ports & interfaces
Number of computers controlled*
4
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
HDMI
HDMI ports quantity
5
HDMI version
2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
4
Console ports*
3.5mm headphone, HDMI, USB A
Console USB ports quantity
4
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
USB connector type
USB Type-A, USB Type-B
Serial ports quantity
1
Audio connections
Yes
Headphone outputs
6
DC-in jack
Yes
Performance
HD type*
4K Ultra HD
Maximum resolution*
4096 x 2160 pixels
Video bandwidth
60 Hz
Scan interval
1,99 s
HDCP
Yes
upgradeable
Yes
Design
Product colour*
Black
Housing material
Metal, Plastic
LED indicators
Yes
Push button
Yes
Display
Built-in display*
No
Power
Power source
DC
Input voltage
5 V
Power consumption (typical)
2.535 W
Sustainability
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
88 mm
Depth
270 mm
Height
55.5 mm
Weight
2.24 kg
Packaging data
Package width
98 mm
Package depth
325 mm
Package height
210 mm
Package weight
2.54 kg
Logistics data
Master (outer) case net weight
11.2 kg
Harmonized System (HS) code
85176200
Master (outer) case width
342 mm
Master (outer) case length
512 mm
Master (outer) case height
232 mm
Master (outer) case gross weight
13.2 kg
Products per master (outer) case
5 pc(s)
Additional Information
| EAN/UPC | 4719264649424 |
|---|---|
| MPN | CS1824 |
| BRAND | ATEN |
