Components
ATEN 4-port USB 3.0 Peripheral Sharing Device
£69.41
ATEN 4-port USB 3.0 Peripheral Sharing Device, 5 Gbit/s, Micro-USB Type-B, Black, Plastic, 0 - 40 °C, -20 - 60 °C
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

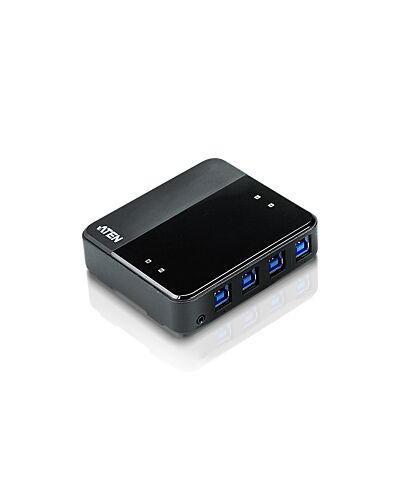

ATEN US434 is a 4-port USB 3.2 Gen1 peripheral sharing device that allows users to share four USB devices between 4 different computers. US434 is USB 3.2 Gen1 compliant, which can support data transfer rate up to 5Gbps and backwards compatible with USB 2.0 and USB1.1. It is perfect for high-bandwidth devices, such as USB docking stations or HD cameras.
1x US434 4 x 4 USB 3.2 Gen1 Peripheral Sharing Switch
2x LIN6-11C1-E11G USB 3.2 Gen1 Type-B to Type-A Cables (1,2m)
2x LIN6-11C1-E12G USB 3.2 Gen1 Type-B to Type-A Cables (1,8m)
1x Remote Port Selector
1x User Instructions
1x US434 4 x 4 USB 3.2 Gen1 Peripheral Sharing Switch
2x LIN6-11C1-E11G USB 3.2 Gen1 Type-B to Type-A Cables (1,2m)
2x LIN6-11C1-E12G USB 3.2 Gen1 Type-B to Type-A Cables (1,8m)
1x Remote Port Selector
1x User Instructions
Key Features
- Enables 4 computers to share 4 USB 3.2 Gen1 devices
- Simple port selection via remote port selector for convenient switch placement
- USB 3.2 Gen1 compliant, supporting data transfer rates of up to 5 Gbps
- LEDs indicates which computer is active
- Over-current protection
- Multiplatform support – Windows, Linux and Mac
- Bus-powered
- Micro USB power jack for additional power supply
- Hot pluggable, no driver or software required
Specifications
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
4
DC-in jack
Yes
Performance
Maximum data transfer rate*
5 Gbit/s
Remote control function
Yes
LED indicators
Yes
Power connector
Micro-USB Type-B
Product colour
Black
Housing material
Plastic
Technical details
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
36.6 mm
Depth
93.7 mm
Height
26.8 mm
Weight
439 g
Packaging data
Package depth
163 mm
Package width
70 mm
Package height
195 mm
Package weight
576 g
Logistics data
Products per master (outer) case
10 pc(s)
Master (outer) case gross weight
6.46 kg
Master (outer) case length
405 mm
Master (outer) case width
395 mm
Master (outer) case height
182 mm
Master (outer) case net weight
4.39 kg
Additional Information
| EAN/UPC | 4719264643798 |
|---|---|
| MPN | US434 |
